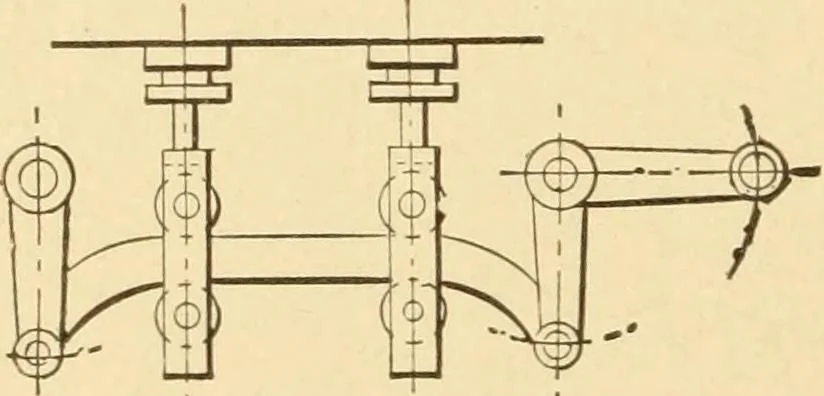

260. SINGLE ECCENTRIC VALVEGEAR, with variable travel, adjustable bya hand-wheel. The eccentric drives ablock in a slotted link, which is rocked on acentral pivot by the screw for va.ry[ng thethrow of the valve. … 261; CAM-BAR VALVE MOVE-MENT.— The horizontal movementof the cam bar by the bell-crank leveralternately moves the two valves.
