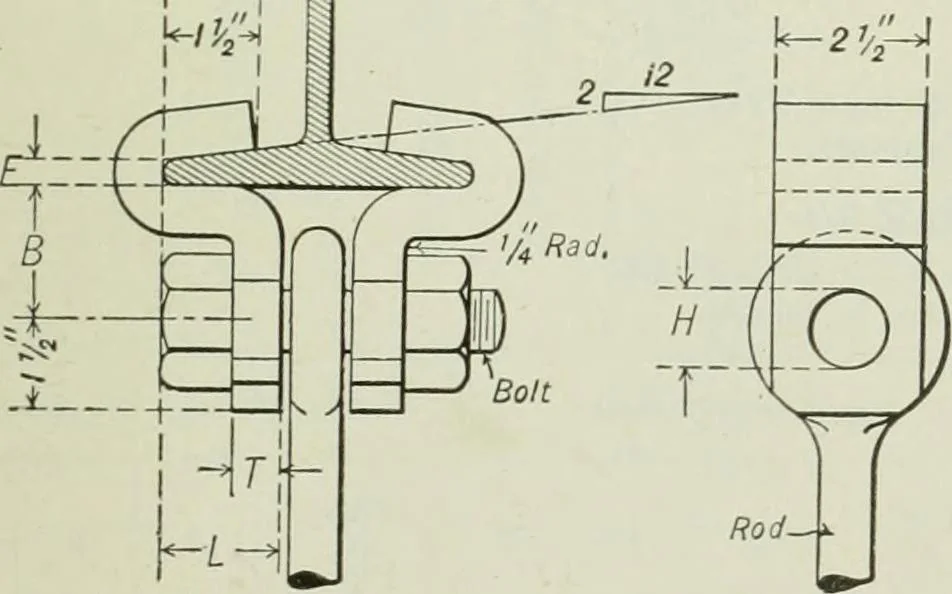

-8 All Dimensions in Inches Fig. 50. Horizontal Type. The size of the rod is determined bythe size of the pipe. See Tables .30and 31. The size of the beam clamp is de-termined by the size of the beam andthe size of the rod. See Table 29. For the vertical type make the lowerrod 15 inches long with… … Upper rod to have right-hand thread and one jam nut. Determinelength of rod in field. Use commercial turnbuckles. Figure clearance between upper and lower rods as about 3 inches. Rods are not upset at ends. Make threads 6 inches long. Horizontaltype rods to have 4 nuts each, right-hand thread.…
