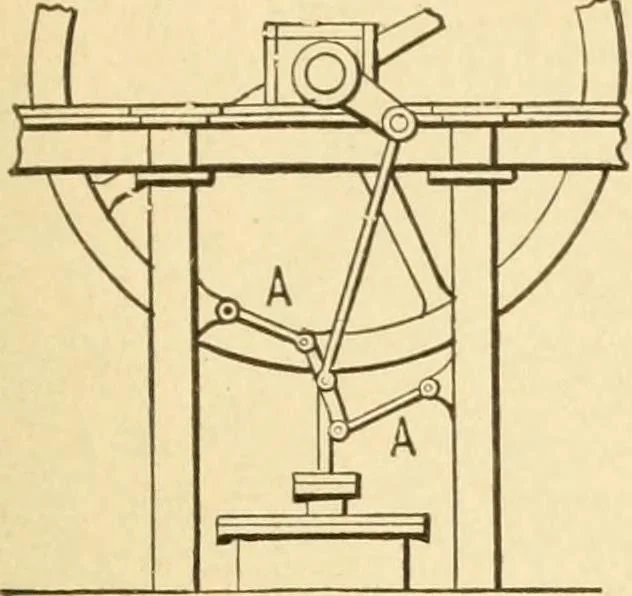

acting engine. The radius bar, A, F, is pivotedto the frame on the centre line and at rightangles to the slot, B. A, C and A, F are of equal length. A, B and A, C are of equal length. 282. PARALLEL MOTION by a rockingbeam. A, E and A, C are equal when E ispivoted in the centre line of motion of…
