Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 93

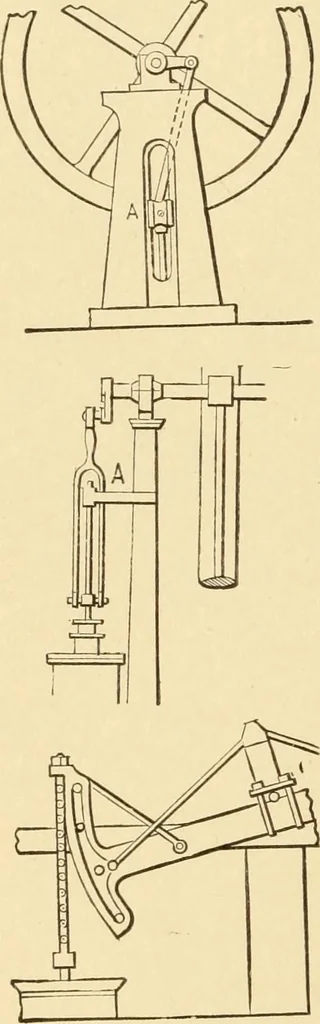

^^^^^^^^^^^ 289. CROSS-HEAD SLIDE athwart theshaft. An obsolete design for a vert :,al enginein a side-wheel steamer. … 290. PARALLEL MOTION by guide bars inthe frame of a vertical engine, with connectingpiston rod and crank. Cross-head sliding in aslot in the frame. Old. 291. PARALLEL MOTION to piston rodand cross-head by prolonging the piston rodthrough a fixed guide and connecting to thecrank with a forked rod. A…
Mechanical movements
