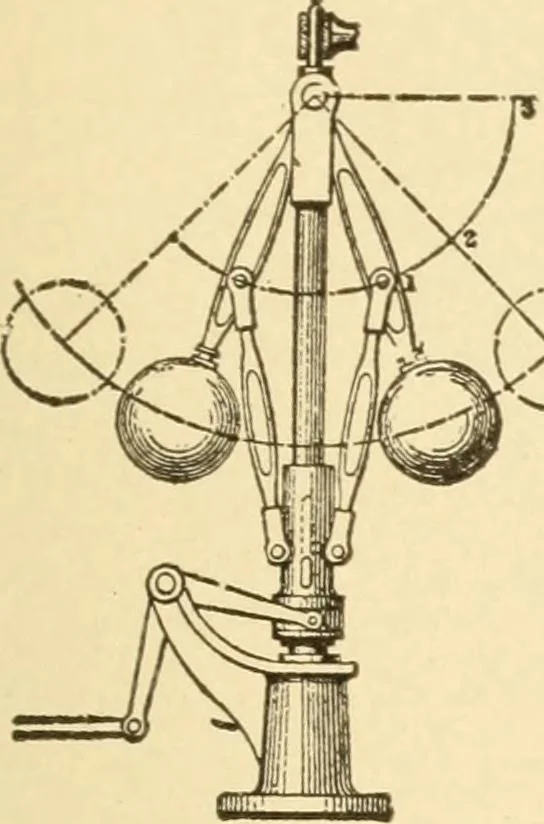

293. RACK GEAR PARALLEL MOTION.— An old pumping device used with a single-Q-^^ acting beam engine. STEAM PO\i^ER. 83 … 294. WATT GOVERNOR.—The cen-trifugal action of the balls lifts the sleeve and.through the bell crank, operates the throttleX valve.
