Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 93

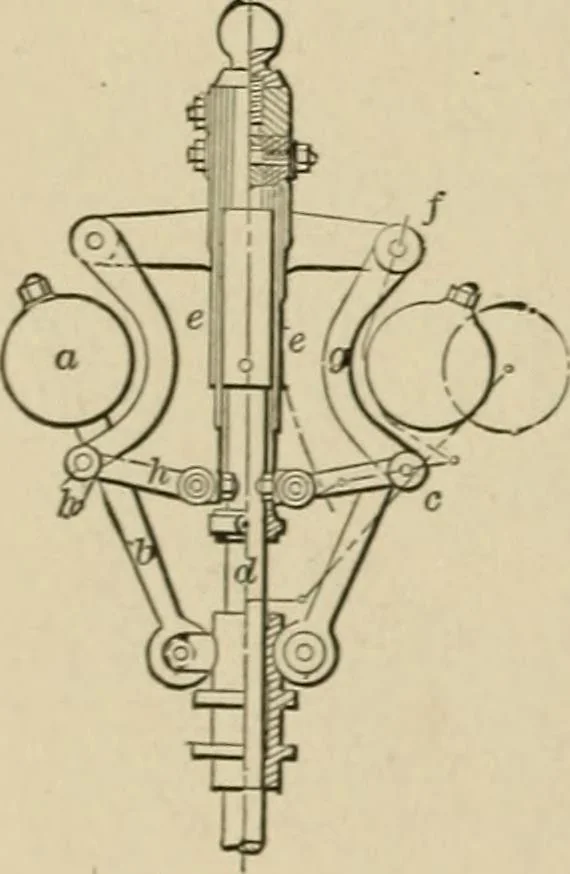

300. DIRECT-ACTING CENTRIFUGALGOVERNOR.—The balls traverse the radialarms a, a, on friction rollers and are restrainedby steel ribbons that pass over a pair of pul-leys at G, and are attached to the spring andgrooved collar that operates the lever andthrottle valve. … 301. SPRING BALANCED CENTRIF-UGAL GOVERNOR, Proell patent.—Theballs are attached to the inverted arms b^ b, andraise the collar sleeve by their outward throw.The movement is restrained by the vertical leafsprings and links. The lift is controlled by thecurved links hung from the cross bar at/.…
Mechanical movements
