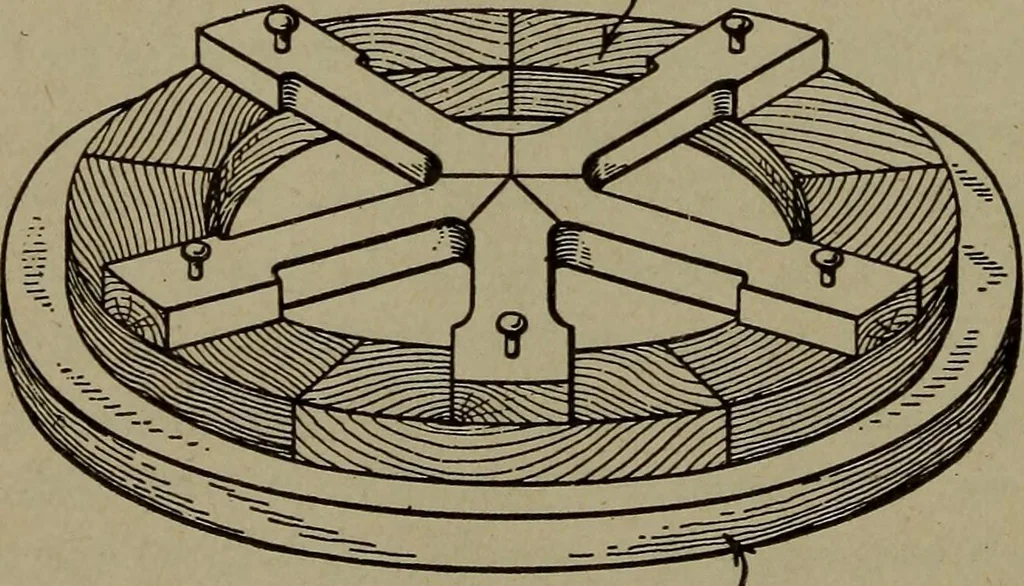

gments the top segment to lay out the other segments,marking them with apencil. Glue a sheetof paper to the face-plate on the location ofthe rim of the pattern,and carefully fit andglue five of these seg-WoodFace-Plate ments to the paper, Fig. 173. Partially Assembled Rim and Pattern fastening the… … PATTERN MAKING 93 As soon as the glue is dry, turn the face and the outer and inneredges of segments true. Locate the partially completed arms onthis ring and fasten temporarily with five small nails, Fig. 173.-Remove from the lathe, fit and glue the five segments between theends of the arms,…
