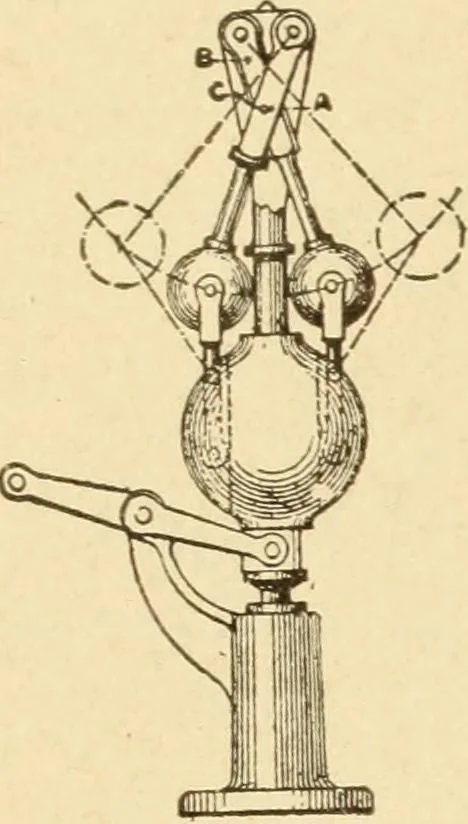

312. PORTER GOVERNOR.—The cen-trifugal balls lift a central weight. A, by thetoggle-arm connection. A high-speed governor. ss STEAM POWER. … 313. RICHARDSON GOVERNOR.— The arms in this governor are crossed and sus-pended from two points, the balls lifting acentral weight by their pivoted connections.The groove on the lower extension of theweight operates the throttle.
