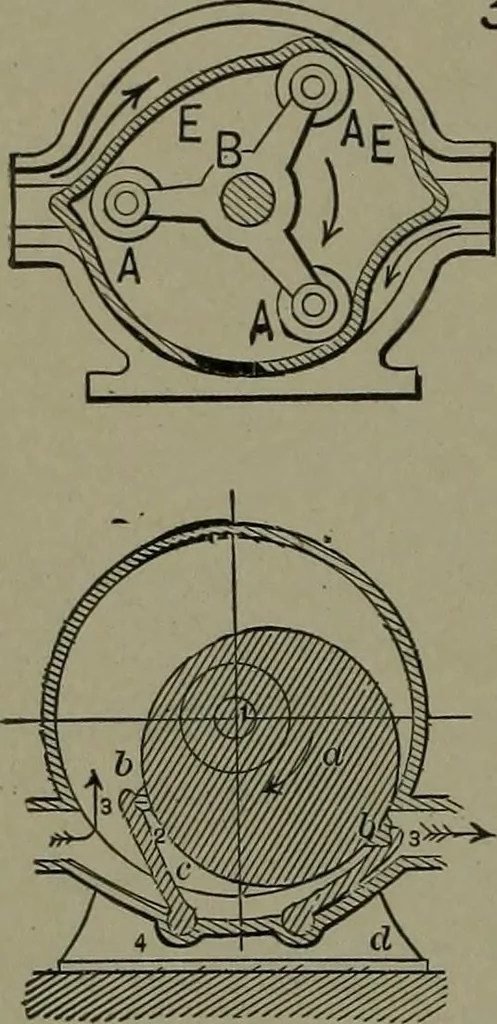

331. NAPIER ROTARY ENGINE.—Aneccentric mounted cylinder on a shaft concentricwith the shell. There are two sliding wings in slotsin the shell, held to their bearings by springs or camwheels on the shaft outside with connecting bars-There are two pair of ports. 92 STEAM POWER. … 332. ROLLER PISTON ROTARY ENGINE.A rubber lining loosely placed within the cylin-der is rolled over by the three-armed roller spider.E, E, rubber lining; B, spider on shaft; A, A, A,rollers. S2,3. COCHRANE ROTARY ENGINE. —An eccentric cylindrical piston rotating on anaxis central to the shell. The…
