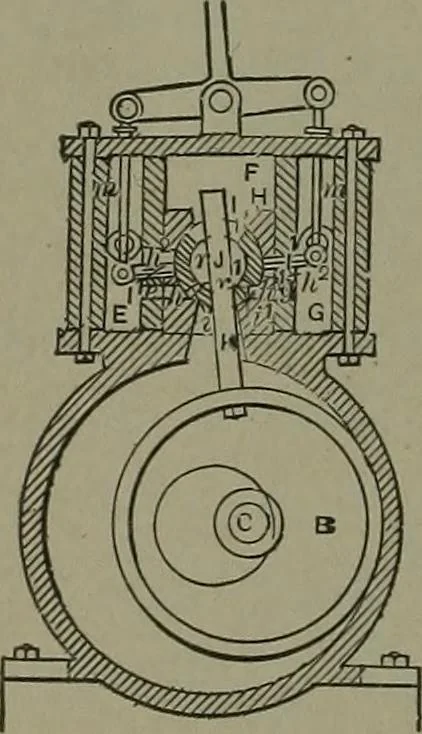

343. STOCKER ROTARY ENGINE.— The sector pistons are each connected throughcentral concentric shafts to slotted cranks inwhich a sliding box and link connect to a crankon a shaft eccentric to the sector shaft. A differ-ential motion of the sectors is produced whilerotating which rotates the driven… … 344. FORRESTER ROTARY ENGINE.—A cylindrical block and guard wing swing on an ec-centric on the shaft. The guard wing slides in andoperates the ports of a two-port rotar}^ valve, theouter shell of which is operated by levers and con-necting rods for reversing the engine.
