Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 114

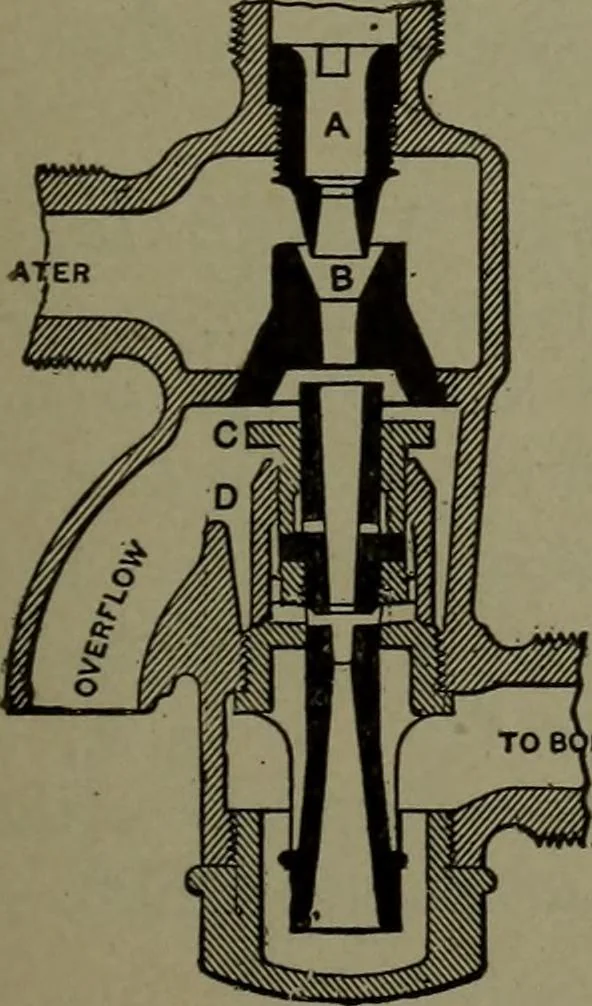

8TEAM … 380. PENBERTHYSPECIAL INJECTOR.—Has three fixed nozzle tubes.The opening of a detachedvalve gives steam pressure inthe chamber E, and opensboth overflow check valves.When the current is estab-lished check valve C closes,followed by check valve D. 381. PARK INJECTOR.—A double ,tube in tandem,…
Mechanical movements
