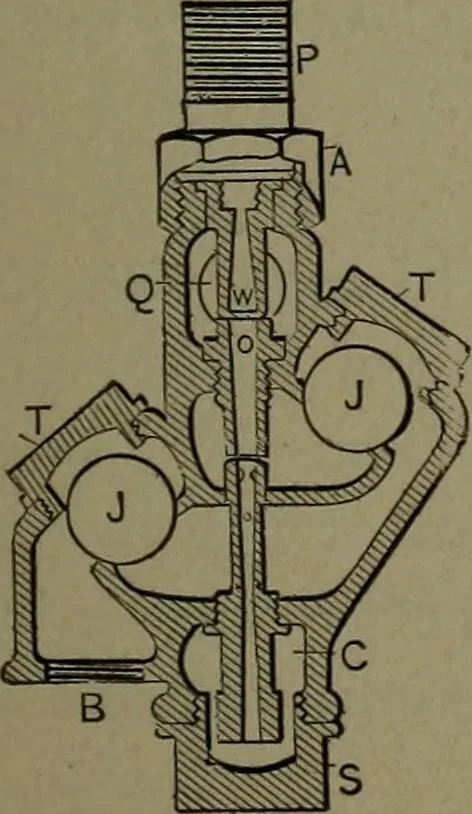

389. HANCOCK INSPI-RATOR.—A double-tube injector.The tube A lifts the water andstarts the circulation through theoverflow, when the steam nozzleB is opened and valves C andD are closed. 390. BALL-VALVE INJECTOR, automatic in action. J, J, ball valves.P, steam inlet.W, inverted nozzle.Q, suction…
