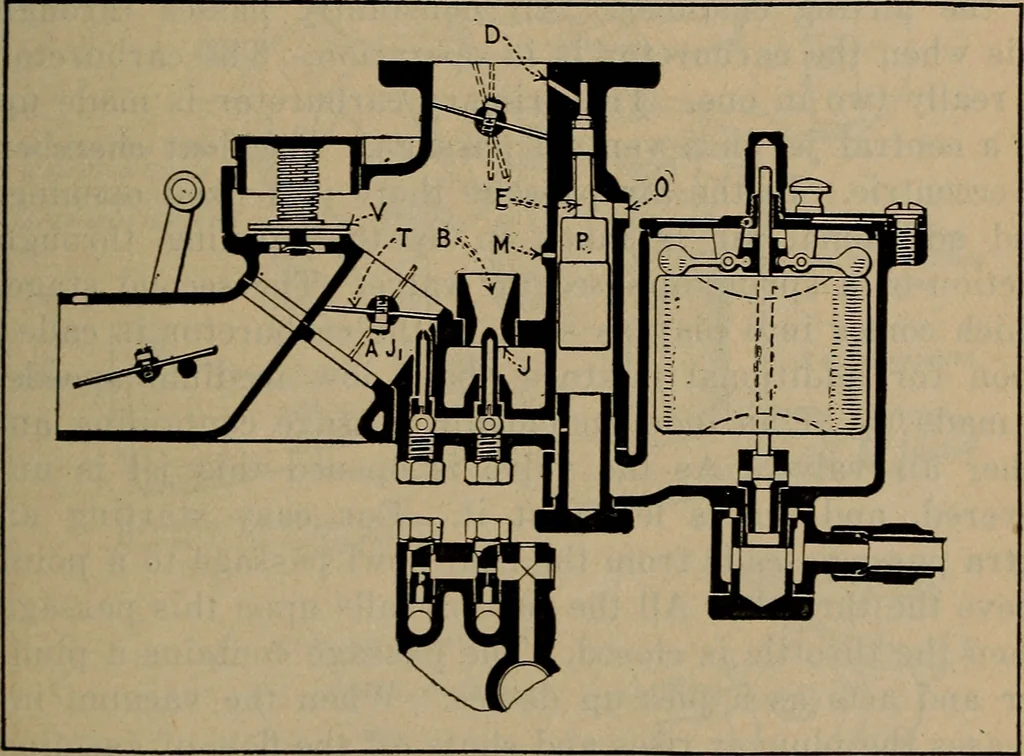

brought into service.For instance, that supplied the primary mixing chamber Ball and Ball Two-Stage Carburetor 131 should be regulated with the throttle partly closed, whilethe auxiliary jet should be adjusted with the throttle fullyopened. BALL. AXD BALL TWO-STAGE CARBURETOR This is a two-stage… … Fig. 48.—The BaU and Ball Two-Stage Carburetor. is a hot-air passage with a choke-valve; the primary ven-turi appears at B; J is its gasoline jet, and V is a spring-loaded idling valve in a fixed air opening. These partsconstitute the primary system. In the secondary systemA is a cold-air passage,…
