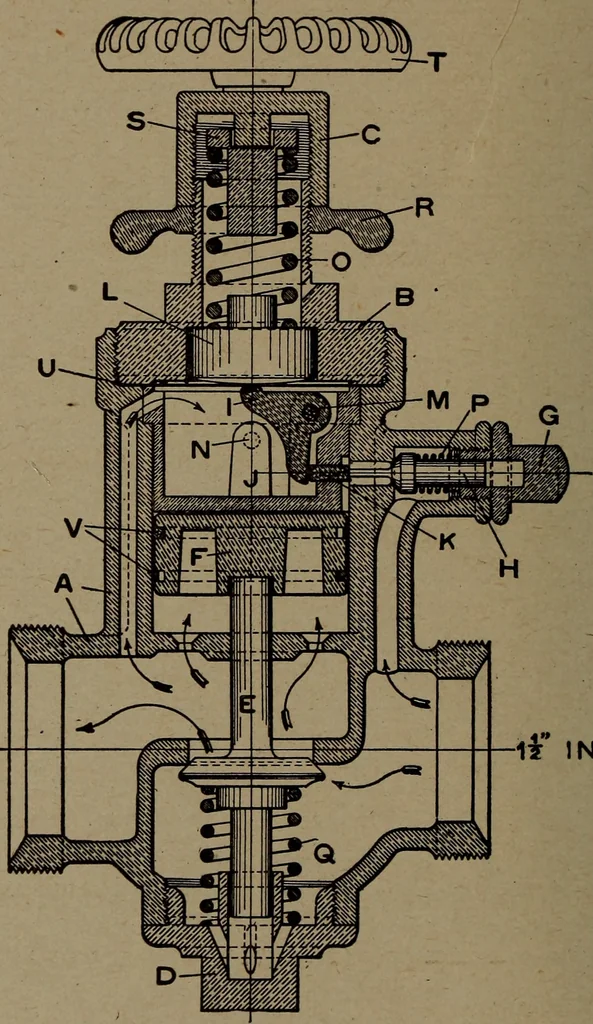

ofany small amount of leakage past the controlling valve intothe space above the diaphragm Q, it can pass out throughthe small port Z in the plug. Fig. 44 is a later type of Gould Pressure Regulator. Thisvalve is used when the demand for steam is greater, due tothe use of two generators, being used… … li INLET Fig. 44. Gould Steam Pressure Regulator STEAM HEAT APPARATUS 299 OPERATION By screwing down on handle T the spring 0 is sufficientlycompressed, to move the diaphragm N and bell crank I, thusopening the control valve H, allowing steam to pass into thechamber above the piston F, forcing it…
