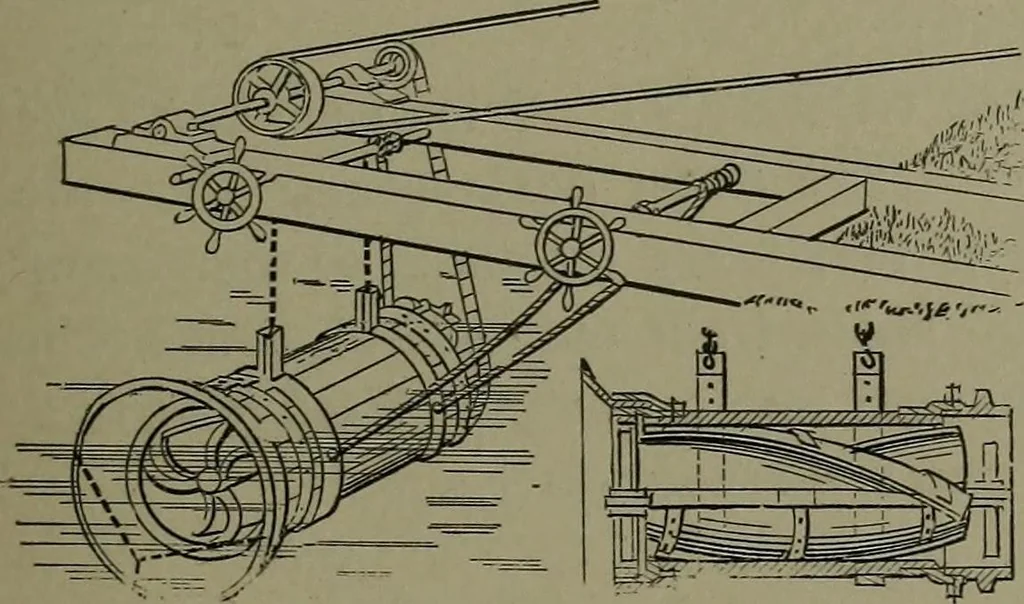

472. BARKER WHEEL.—A reaction waterwheel. The reaction of the water escaping fromthe tangential orifices at the ends of the armsunder the pressure of the water head in the hol-low shaft gives impulse to the wheel. Very lowefficiency. … 474. Section of wheel and case. 473. CURRENT MO-TOR.—A propeller revolv-ing within a case with ex-panding mouth to increasethe force of the current.A sprocket-wheel on therear end of the propellershaft with chain transmis-sion to shaft on suspen-sion frame.
