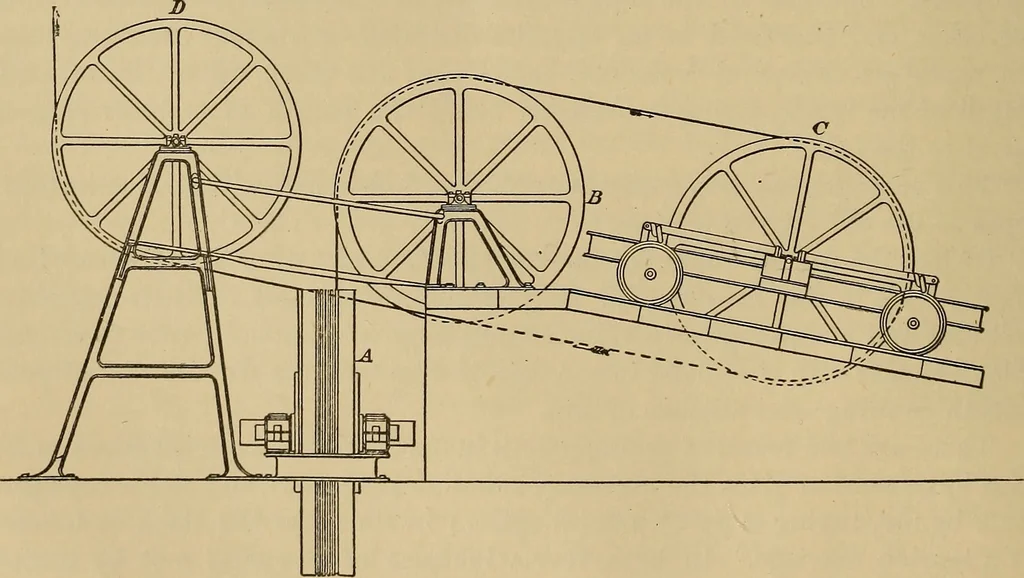

Fig. 654. there are four grooves and lines of rope for adhesion; one line passes over thelarge standing 10-foot sheave B, thence round the tension pulley 0 on a weightedcar moving in inclined rails, thence over the sheave D to the line of bridge, over … Fir. 655. MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 295 the bridge beyond track, and returning tlie otlier to the pulley A. The cablein diameter and general arrangement is similar to that for cable roads, and isonly given as an illustration of an extreme size of tension car. For transmis-sion of…
