Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 189

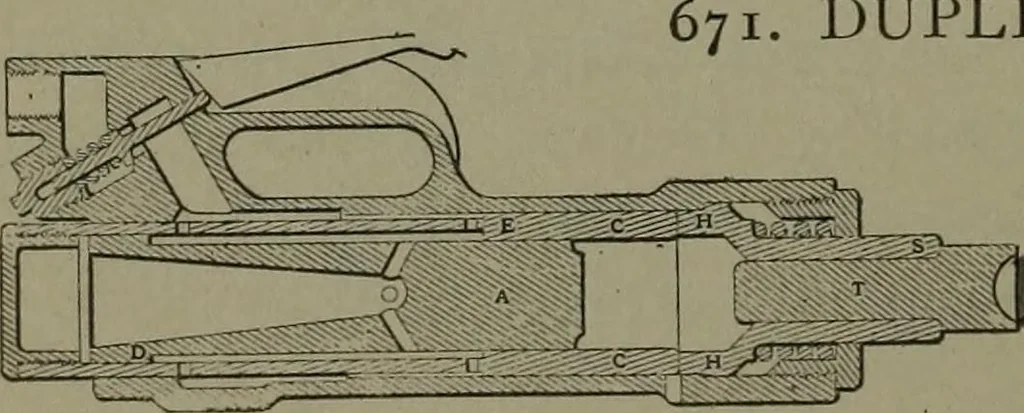

670. COMPRESSED AIR LIFT^, Clayton ^model. Showing safety stop on the piston rod,which automatically stops the lift at any set pointby closing the air valve. … cylinder, C, on the tool socket, H.by the differential piston areas,this operation. DUPLEX PNEUMATIC RIVETER. — The striking piston, A, is en-cased in a striking cylinder, C,^hat the tool, T, receives ablow alternately from the ham-mer piston, A, and from theThe method of operation is shownThe hand…
Mechanical movements
