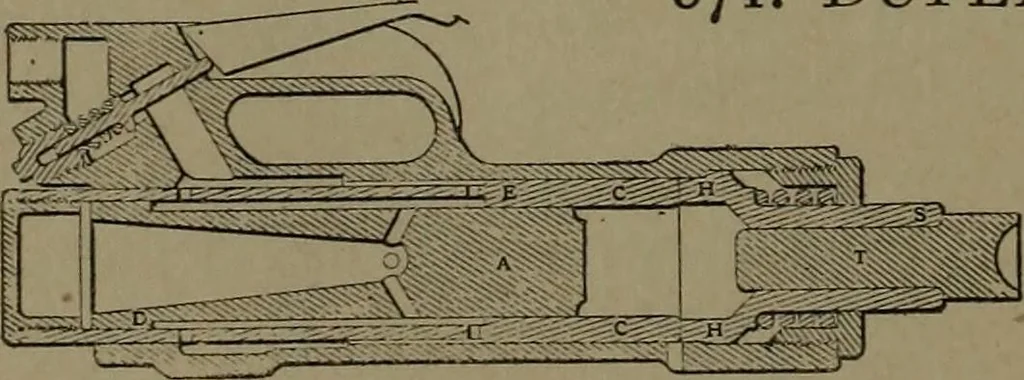

670. COMPRESSED AIR LIFT, Clayton model. Showing safety stop on the piston rod,which automatically stops the lift at any set pointby closing the air valve. … cylinder, C, on the tool socket, H.by the differential piston areas,this operation. 671. DUPLEX PNEUMATIC RIVETER.— The striking piston. A, is en-cased in a striking cylinder, C,so that the tool, T, receives ablow alternately from the ham-mer piston, A, and from theThe method of operation is…
