Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 193

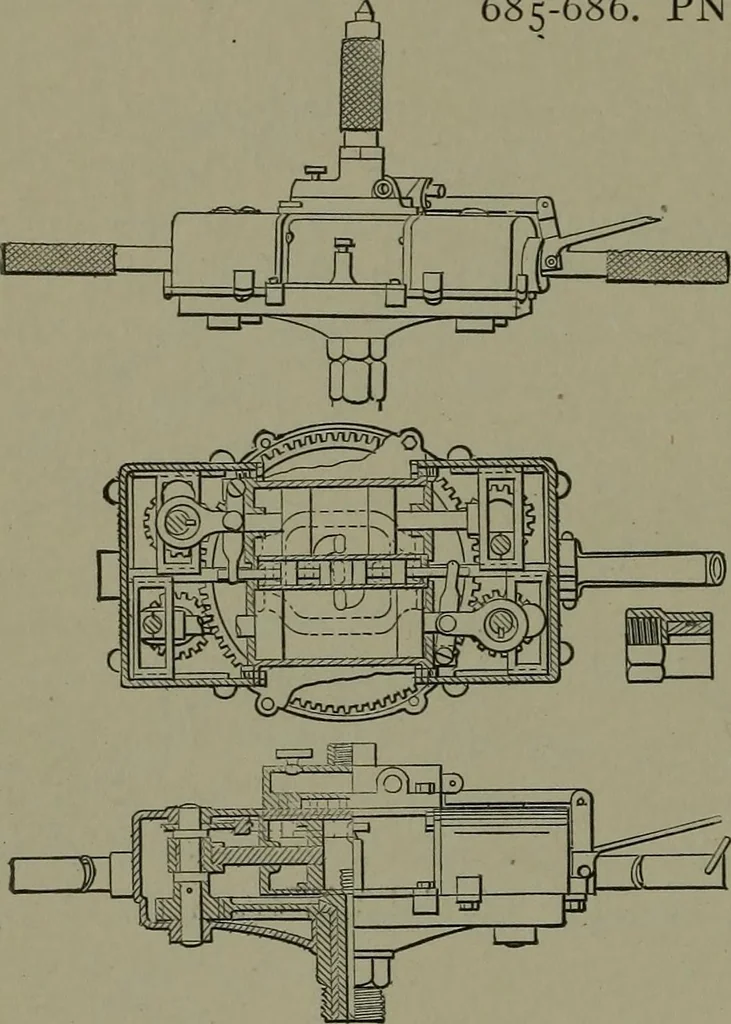

i84 AIR POWER APPLIANCES. … 685-686. PNEUMATIC MOTOR DRILLSTOCK, operated by four pis-tons in two cylinders, double-acting. The piston rods havea jointed connection to camcranks on the pinion shafts.The piston valves are oper-ated by levers pivoted to op-posite piston rods, as shown inthe horizontal section. No. 686.The…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
