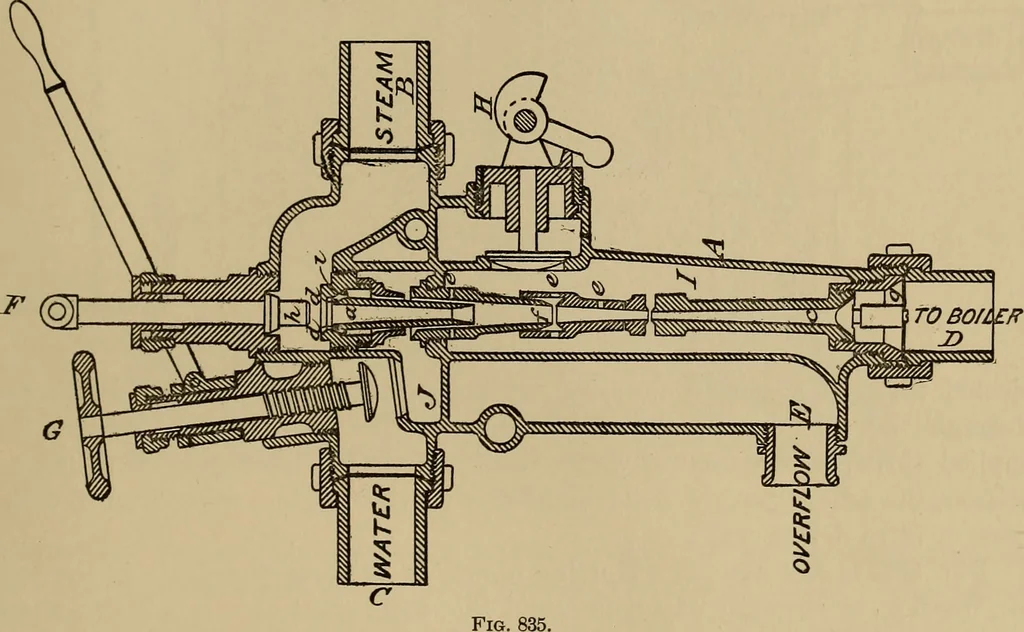

roducing a strong vacuum in the water-chamberJ, into which the water from the source of supply is forced by the atmosphericpressure, the characteristic of a lifting injector. The combined jet of waterand steam passes through the combining tube; the valve F is then fully raised,admitting steam into… … The issuing steam and water maintains its velocity by reduction of the areasof channel discharge till the last channel in connection with the boiler, whichincreases till it meets the valve g. The lower the temperature of the feed-water the greater the capacity of theinjector. As the steam strikes…
