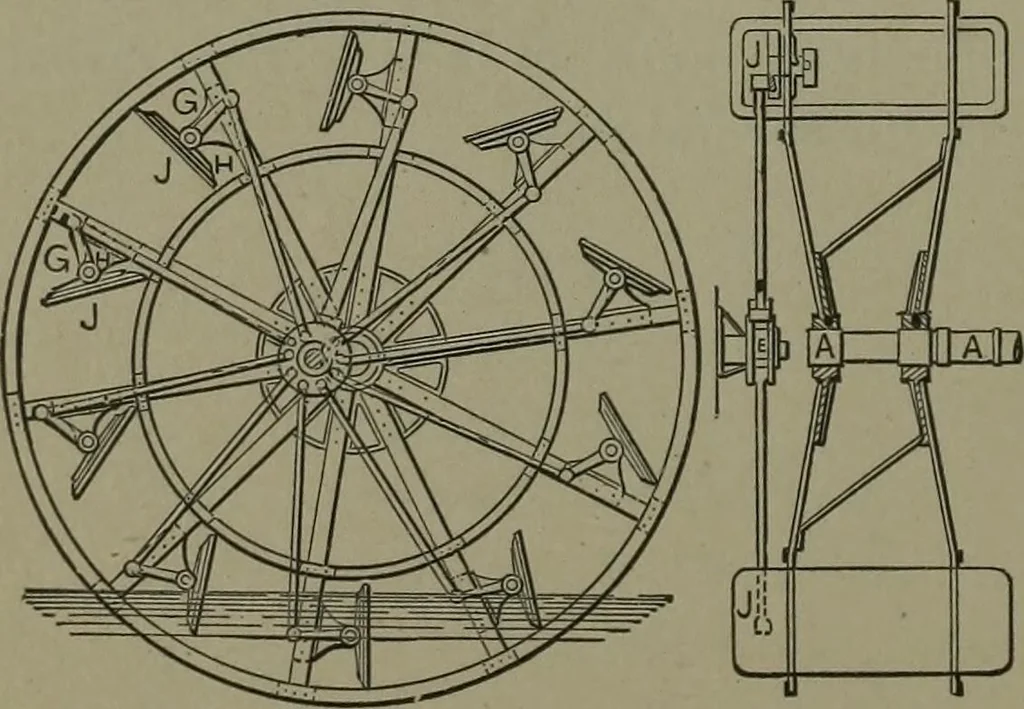

a 819. VERTICAL BUCKET PADDLE WHEEL. c —The buckets, a, a, a, a, are pivoted to the shaft arms, b, b. To the pivots are attached cranks, <r, <r, r, c which are pivoted to the arms of an eccentric ring re- c volving with the shaft on. a fixed eccentric, e. By this a arrangement the buckets are… … 820. FEATHERING PAD-DLE WHEEL.—The buck-ets are hinged with back le-vers and turned to their properposition by arms pivoted ec-centric to the shaft. Theframework of the wheel is ofiron or steel. 821. Cross section. NAVIGATION AND ROADS. 21^
