Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 240

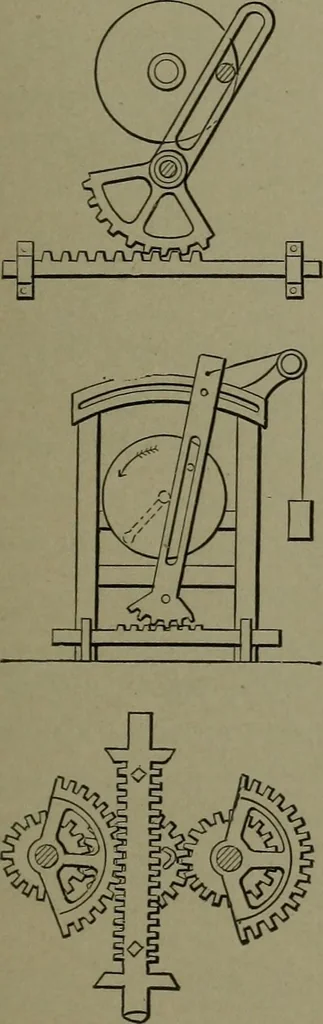

894. QUICK BACK MOTION given to arack slide by a sector gear and slotted arm ;operated by a pin in a revolving face plate. 895. ALTERNATE RECTILINEAR MO-TION from a swinging lever with sector andrack. The lever has a quick return motion,operated by a wrist pin on a face plate, andfree from backlash…
Mechanical movements
