Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 244

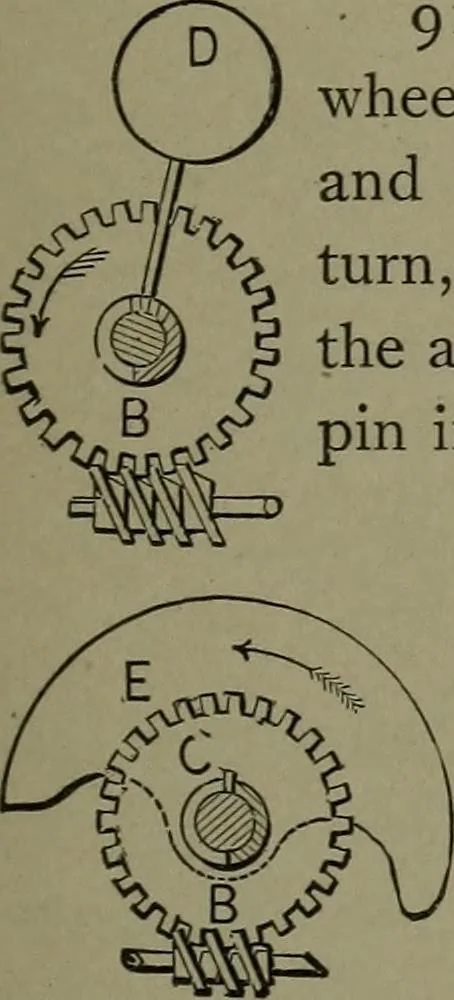

916. WORM-GEAR PINION to drive an inter-nal spur-gear wheel. 917. ANTI-FRICTION WORM GEAR.- … The worm-wheel bearings are on frictionrollers running on pins. 918. RELEASE ROTARY MOTION.—A wormwheel B, fast on a shaft to which is attached a loose armand weight D, that carries the arm quickly over a half-turn, more or less, as required. The worm wheel liftsthe arm and weight to beyond the…
Mechanical movements
