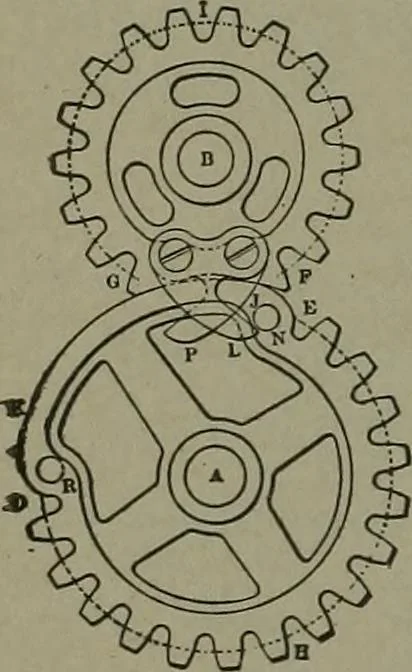

954. INTERMITTENT MOTION OF SPURGEAR.—A is the driver. The pin J and the dog Lare on the front side of the gear; the pin R and dogP are on the back. This class of gears may be madein varying proportion to suit the required stop motionof the gear B, A being the driver.
