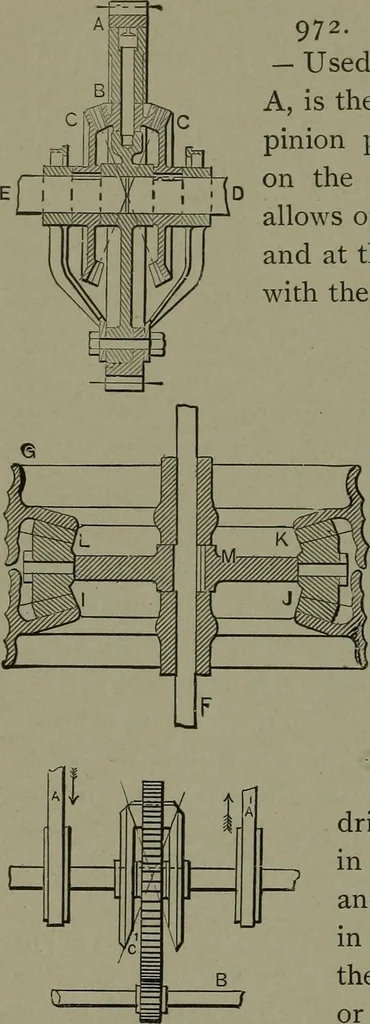

971. CHANGE GEAR MOTION.—The shaftsA and B are disconnected, and carry a loose hub andspur wheel in which is pivoted the bevel pinion T.The bevel wheel C is fast on shaft A, and D is faston shaft B. Any motion given to the central spurgear either way by the pinion shaft E varies the speedof the… … 972. DIFFERENTIAL DRIVING GEAR.— Used on the driving shaft of motor carriages.A, is the driven gear from the motor; B, a bevelpinion pivoted laterally; C, C, bevel gears faston the divided shaft E, D. This arrangementallows one wheel to advance in turning a curve,,and at the same time to receive an…
