Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 171

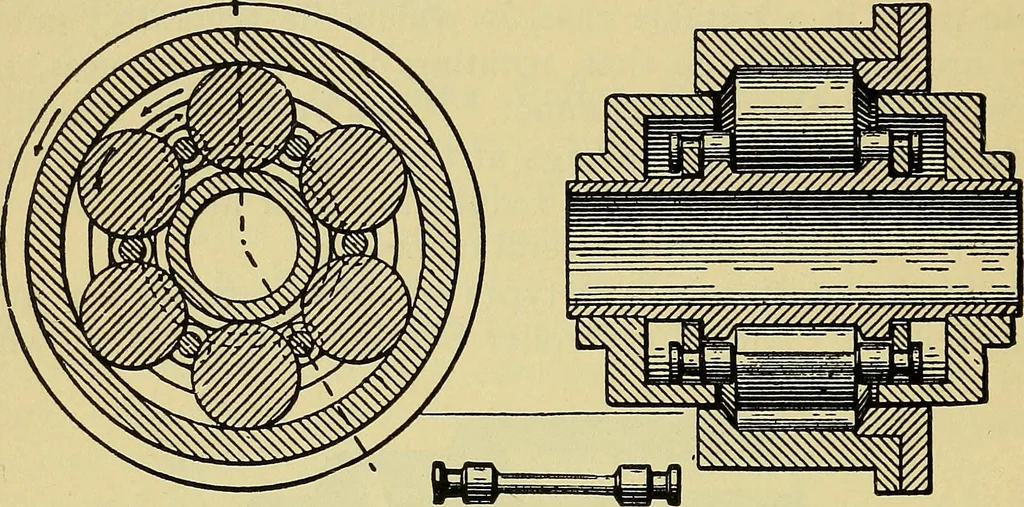

n perfect harmony with themain rollers, traveling just fast enough to keep up with them ingoing about the axle, thus avoiding both dragging and .pushing. 158 SELF-PROPELLED VEHICLES. In this type of bearing the end thrust is entirely taken bybevels, on the principle of the flanges on car wheels,… … Fig. 190.—Sectional Diagrams of the American Roller Bearing-. These bearings arebeveled at the ends, as indicated, the bevels taking up the end thrusts, and are sepa-rated by smaller rollers, one of which is shown below the larger figures. These sepa-rating rollers do not come into contact with the…
