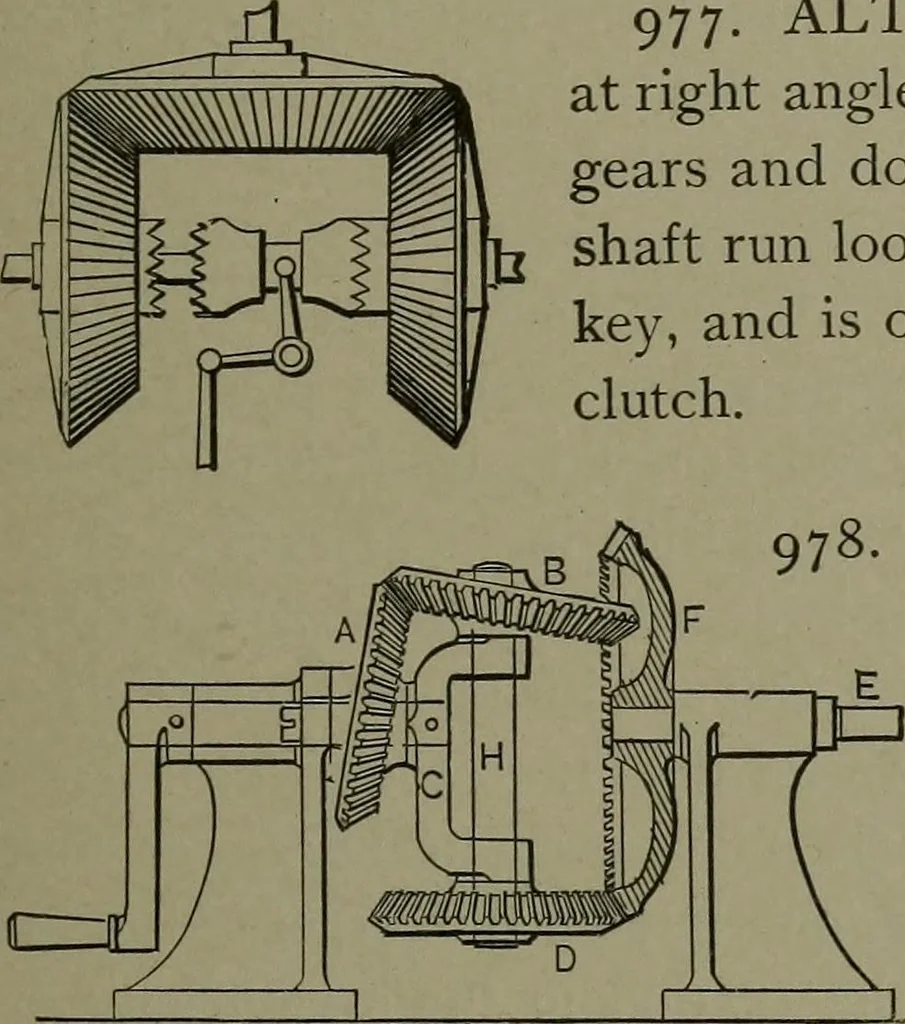

976. CONTINUOUS SHAFT MO-TION from an alternating driving shaft.The ratchets fixed to the bevel gears onthe shaft a are operated by pawls fixedto the shaft, the rocking of which re-volves the bevel gear and shaft B in onedirection. … 977. ALTERNATING MOTION of a shaftat right angles to a driving shaft by three bevelgears and double clutch. Bevel gears on clutchshaft run loose. Clutch slides on a feather orkey, and is operated by a Y-lever and groove in.clutch. ECCENTRIC WHEEL TRAIN. —The elliptical bevel gear A isfixed to the…
