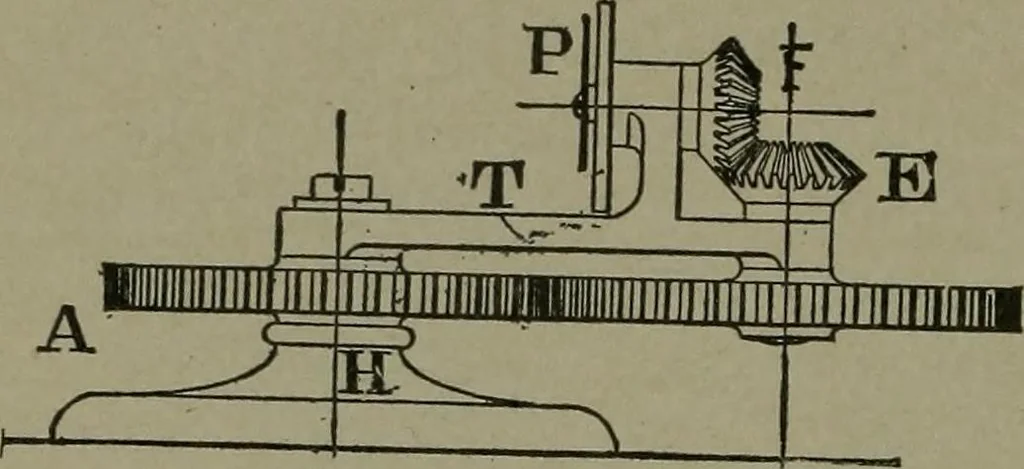

988. PLANETARY MOTION applied to anapple-paring machine. The gear F is fixed to thecrank shaft. The internal spur gear A is stationary^On turning the crank the pinion B rolls forward,carrying the arm T at half the velocity ofthe crank. The bevel gear A revolves withthe crank, driving the spindle K… … 989. PLANETARY GEARTRAIN.—The arm T revolvesaround the fixed gear A, on thestand H. The gear B and bevel■^gear E are fixed on a shaft andturn in one direction, giving acontrary motion to the bevel gear F and index hand P. p/ 990. PLANETARY GEARTRAIN. The arm T revolvesaround the fixed gear A.…
