Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 257

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 257

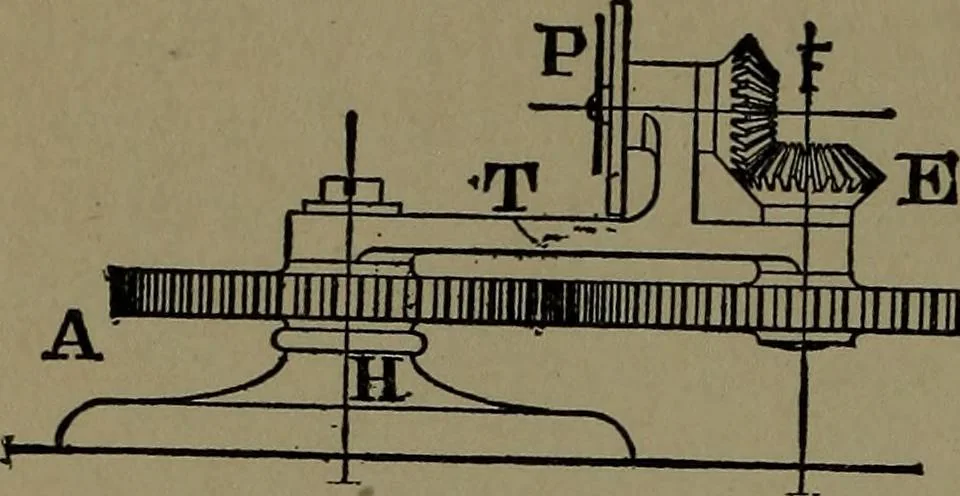

988. PLANETARY MOTION applied to anapple-paring machine. The gear F is fixed to thecrank shaft. The internal spur gear A is stationary.On turning the crank the pinion B rolls forward,carrying the arm^ T at half the velocity ofthe crank. The bevel gear A revolves withthe crank, driving the spindle K… … 989. PLANETARY GEARTRAIN.—The arm T revolvesaround the fixed gear A, on thennrnMfUM stand H. The gear B and bevel gear E are fixed on a shaft andturn in one direction, giving abontrary motion to the bevel gear F and index hand P. p, 990. PLANETARY GEARTRAIN. The arm T revolvesaround the fixed gear…
