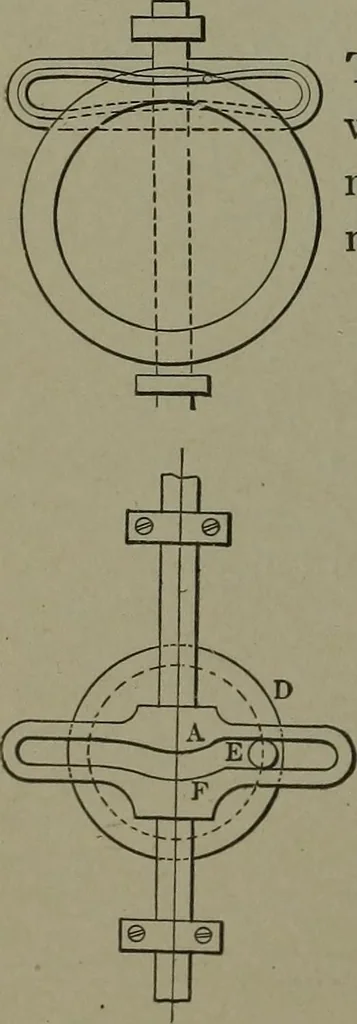

1035. TRIANGULAR ECCENTRIC forproducing a stop motion at each half-revolutionof the face plate a, by the proportional peripherallength of the outer curve of the triangular cam.Used on a French engine. 1036. RECIPROCATING MOTION with fourstops, two of which are of longer duration than theothers. A… … 1037. UNIFORM RECIPROCATING MO-TION from the circular motion of a crank or discwrist pin. The endless groove in the cross head ismade to conform in shape to the varying rectilinearmotion of the wrist pin. 1038. NEEDLE-BAR SLOT CAM, for sew-ing-machines. The depression in the pin slotgives the…
