Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 329

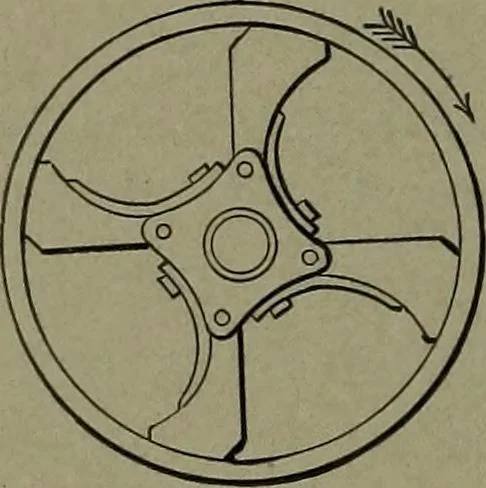

-^xw 1301. ECCENTRIC LINE COUP-LING.—Face plates, fixed to ends ofshafting considerably out of line butparallel, may be connected by four orfive bars with offsets to clear each otherin their revolution on the face plates. 1302. Side view of offset links. … 1303. SIMPLE FRICTION PULLEY.—The self-acting clutch arms act upon the pulley rim inone direction only. When shaft motion is reversed,the pulley is free.
Mechanical movements
