Mechanical movements, powers, devices and appliances (1901)

Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 340

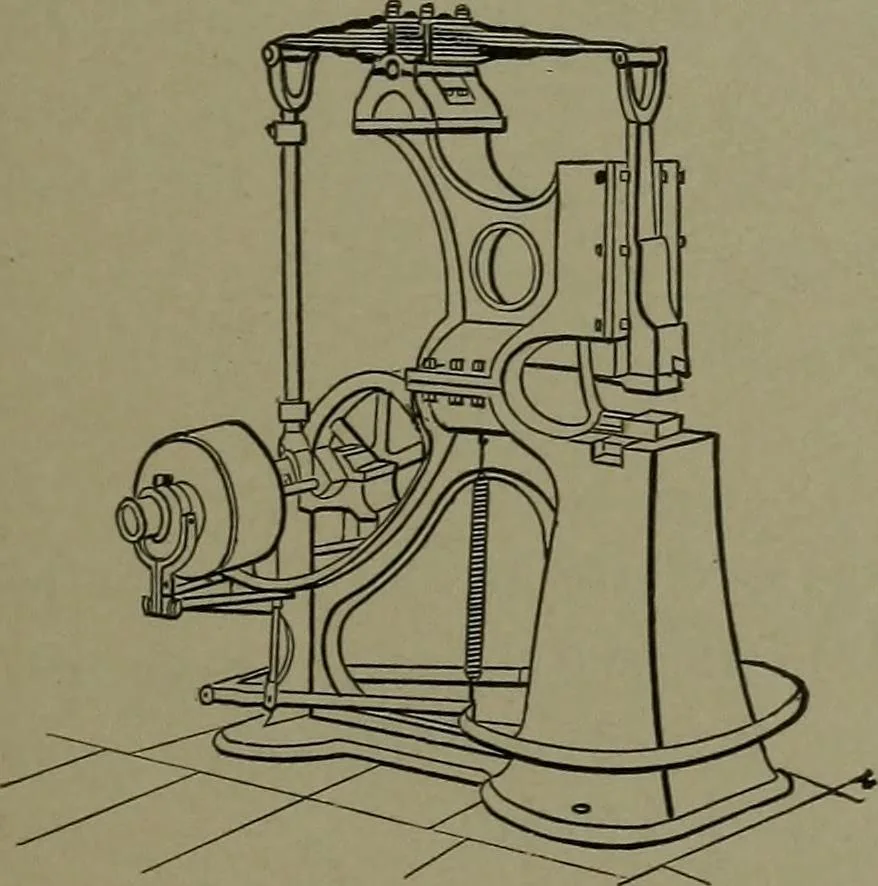

An illustration from Mechanical movements, powers, devices and appliances, 1901, leaf 340 — 1366. BEAM TRIP HAMMER. —The beam is vibrated by an ec-centric on the driving shaft. Thecushions intensify and regulate theblow of the hammer. The treadleoperates the brake and controls theblow of the hammer. Bradleypattern. … 1367. SPRING HAMMER.—The height of the hammer, to suit the sizeof the forging, is adjusted by chang-ing the length of the connecting rod.The treadle controls the stroke by-operating a friction gear on the driv-ing pulley.

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
