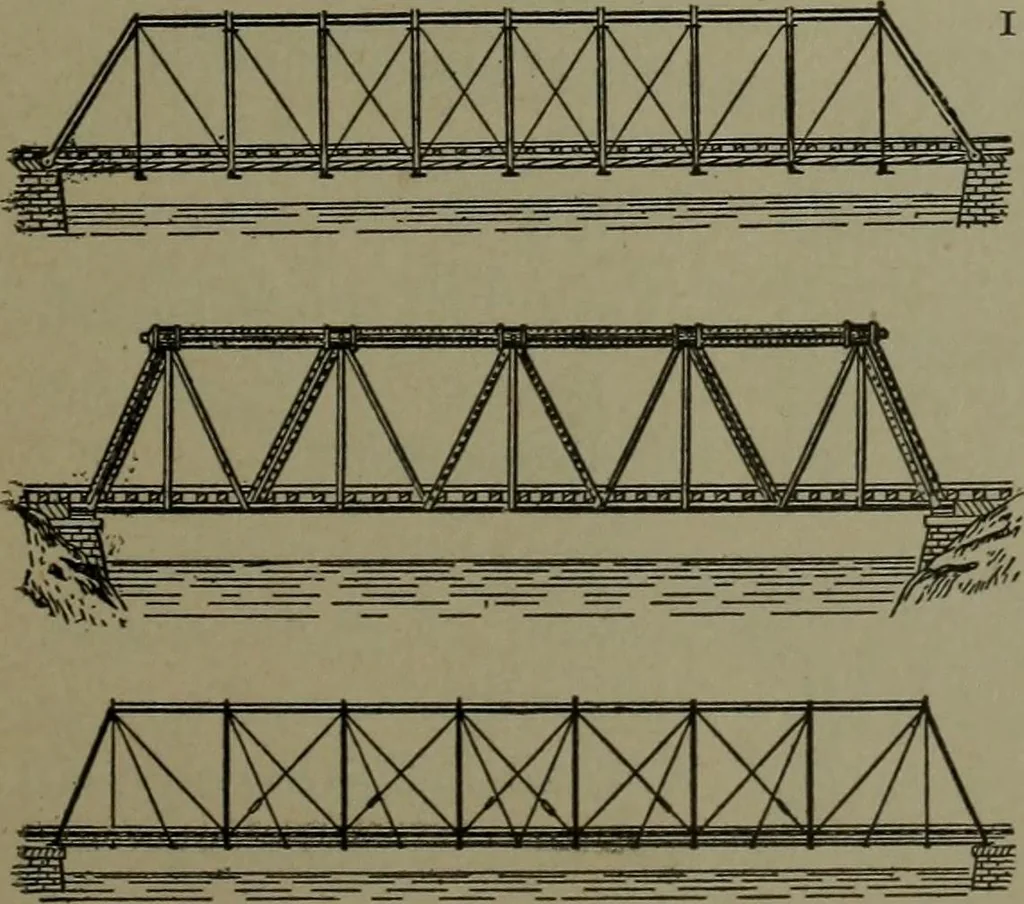

7. Double strut deck trussfor 50 to 70 feet span, 1488. Multi-ple strut decktruss for 100feet span. 1489. BRIDGE TRUSS.—Inclined strut and tie rod for eachpanel,with stiff compression upperchord. Vertical members are tierods. 1490- BRIDGE TRUSS— Vertical struts except in endpanels, which have… … 1492. BRIDGE TRUSSES.-^ TheWhipple truss. Ver-tical and end posts arestruts; vertical tie rods fromend posts ; diagonal tie rodsin panels. 1493. Inclined posts andvertical tie rods. Baltimoremodel. 1494. Whipple truss,with interpanel tie rods. 358 CONSTRUCTION AND DEVICES. 1495. ARCH TRUSS…
