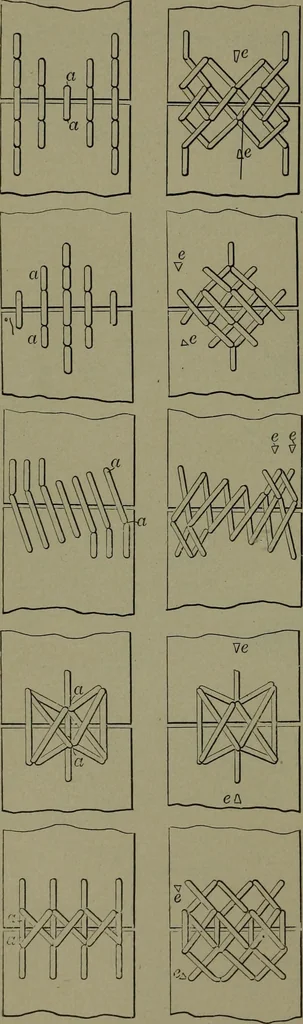

64. VERTICAL TENSION CARRIAGE. with slides and pulley guide. 32 TRANSMISSION OF POWER. … 65-66. BELT LACING.—The straight lacing 65 should run nextthe pulley, while 66 represents theoutside of the belt. Lace shouldbe drawn in at a^ a, to centre ; laceeach way out and return, endingat e^ e, 66, on outside of belt. 67-68. BELT LACING.—In this style the straight side shouldrun next the…
