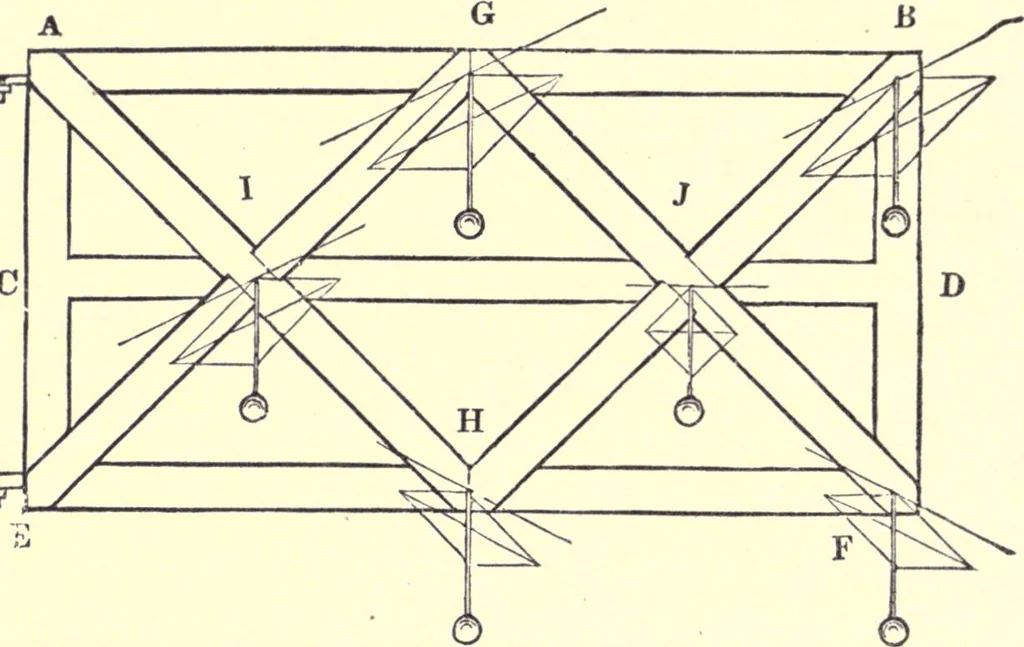

eline, h i, which the straining force would occupy if unresisted,and A E on the opposite side. The place of the latter mightbe supplied by a chain or rope. In Fig. 209, the foot of therafter at A is sustained by two forces, the wall and the tie- 168 AMERICAN HOUSE-CARPENTER. beam, one perpendicular… … Fig. 215. 274.—Another example : let EA B F, (Fig. 215,) representa gate, supported by hinges at A and E. In this case, thestraining force is the weight of the materials, and the directionof course vertical. Ascertain the dividing line at the severalpoints, G, B, f, J, H and F. It will then appear…
