Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 52

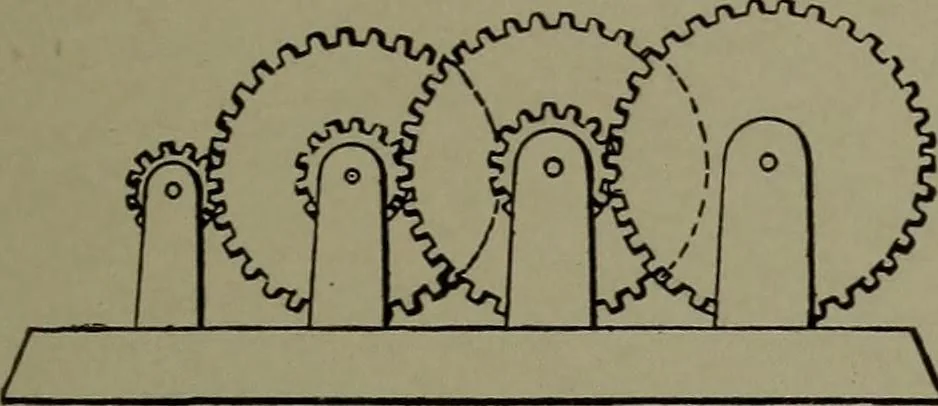

132. OBLIQUE SPUR AND BEVEL GEAR —An oblique tooth spur gear and an obliquebevel gear, operating shafts running at an angularposition. 133. OBLIQUE BEVEL GEAR on shafts atright angles and crossing out of axical plane. 134. GEAR TRAIN—Solutionfor increased speed: Divide themultiple of the number of…
Mechanical movements
