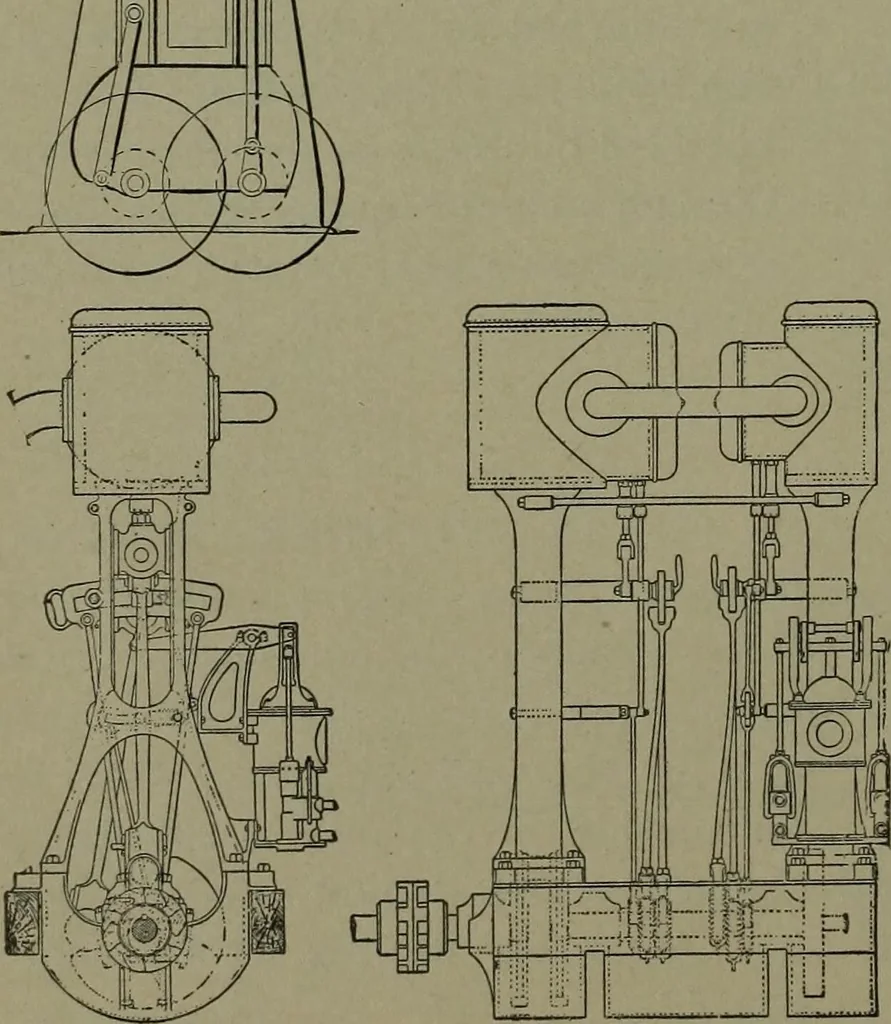

232. TANDEM COMPOUND VERTICALENGINE, with cross-head and two piston rods-for low-pressure piston -^ P^ 1 1 M--- — 1 \ i ^li—in 233. COMPOUND ENGINES for twin screws.There may be one or two pair of compound cylin-ders. The dotted lines represent cylinders of thetandem model. … 234. C0MP0UN1> YACHT ENGINE, Her- reshoff model. Direct ^^y receiver pipe. End and longitudinal elevation. STEAM POWER. /I
