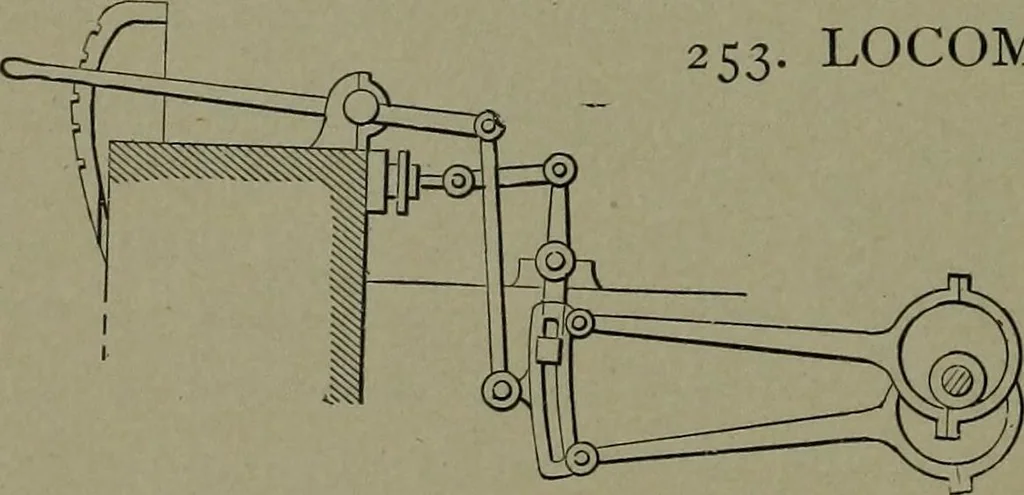

253. LOCOMOTIVE LINK-MOTIONVALVE GEAR.—In thisarrangement the slottedlink is moved up anddown over the wrist pmblock by the lever andconnecting rod; the le-ver, locking in the toothed sector, allowing for a close connection tothe valve stem by a lever and short connecting rod. 254.
