Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 330

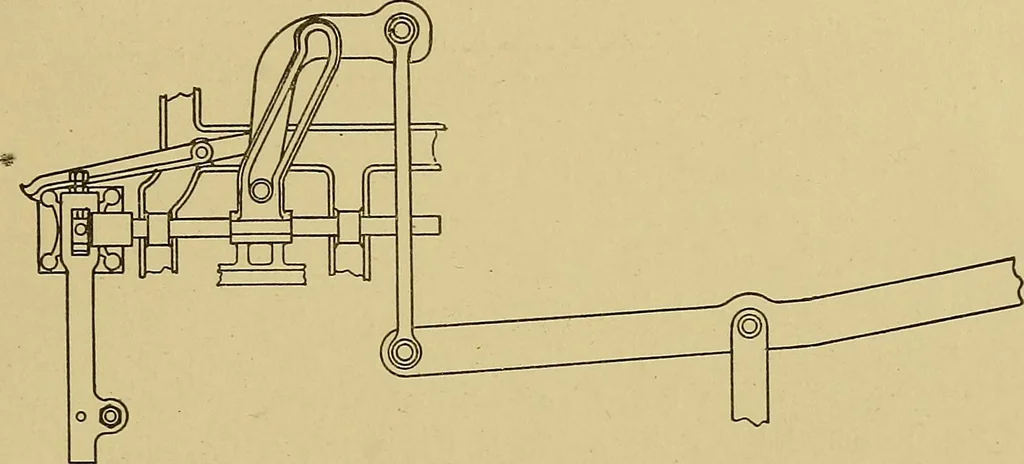

the cylinder is tooshort, it causes too sharp a turning of the cylinder, which has atendency to jump the cards from the pegs; and if the cylindermoves out too far, there is too much friction on the working parts,as the laro-er distance has to be traveled in the same space of timeas the shorter… … Fig. 20. Spindle Cylinder Motion. . top and bottom of the board, and have the needle points as nearthe center of the holes in the cylinder as possible. It is particu-larly desirable that all points be square and straight with thebatten motion, because the batten, moving from a top…
