Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 84

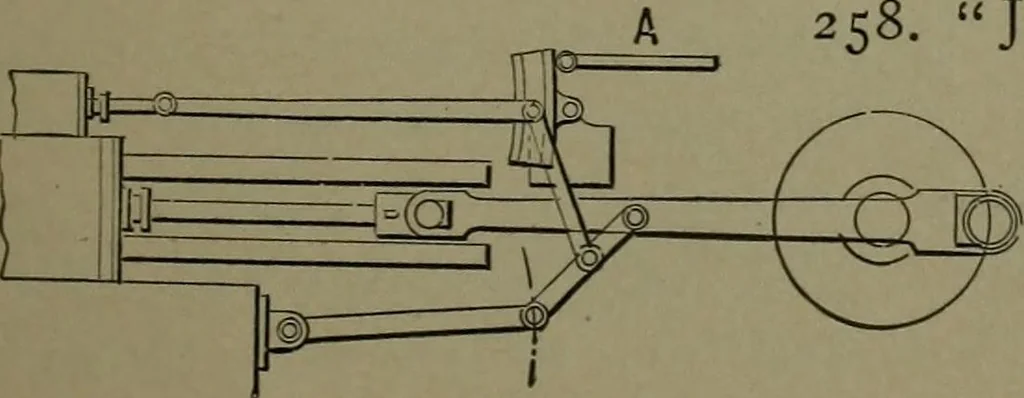

257. JOYS VALVE GEAR for a ver-tical engine. Operated from a pin in theconnecting rod. Reversal is made by chang-ing the position of the slotted Imk … JOYS • VALVE GEAR for ahorizontal engine. Adjust-ment is made by the angular position of the slottedlink. Valve motion by crankrod and links. 76 STEAM POWER.
Mechanical movements
