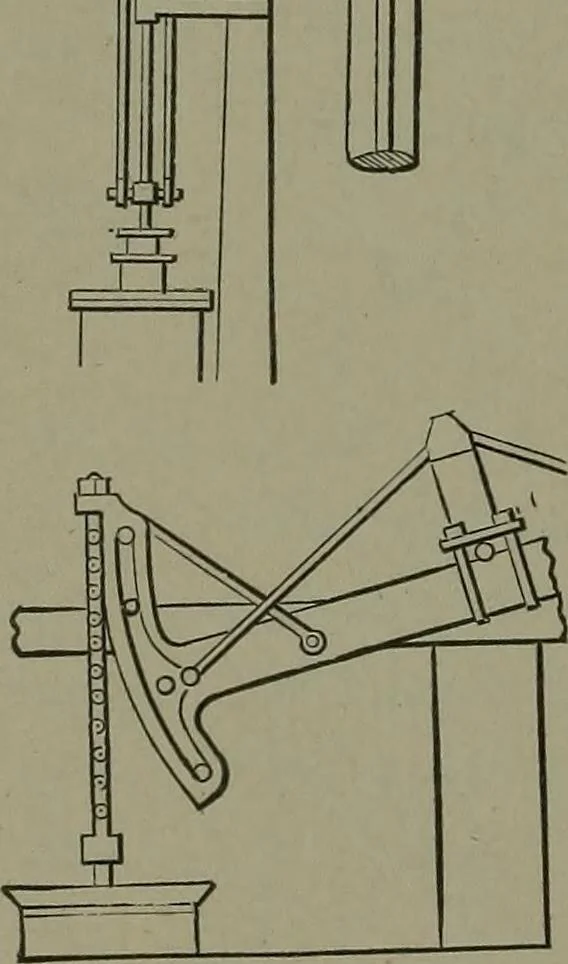

M 290. PARALLEL MOTION by guide bars inthe frame of a vertical engine, with connectingpiston rod and crank. Cross-head sliding in aslot in the frame. Old. … 291. PARALLEL MOTION to piston rodand cross-head by prolonging the piston rodthrough a fixed guide and connecting to thecrank with a forked rod. A very old device andmuch in use now on pumps. 292. PARALLEL MOTION from a sec-tor beam. Used on old, single-acting, atmos-pheric pumping engines.…
