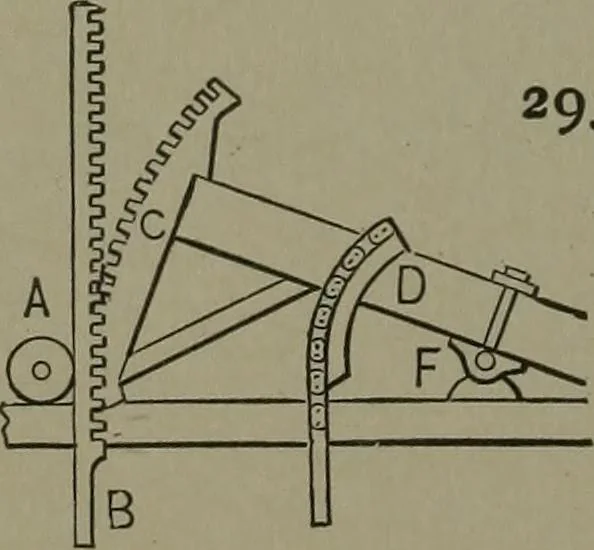

N to piston rodand cross-head by prolonging the piston rodthrough a fixed guide and connecting to thecrank with a forked rod. A very old device andmuch in use now on pumps. 292. PARALLEL MOTION from a sec-tor beam. Used on old, single-acting, atmos-pheric pumping engines. Cylinder is open attop.… … 293. RACK GEAR PARALLEL MOTION.— An old pumping device used with a singleQ--..^ acting beam engine. f: STEAM POWER. 83
