Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 100

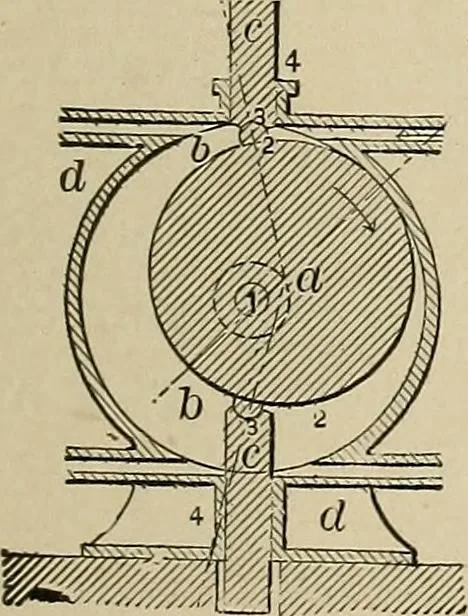

330. ROTARY ENGINE.—B, shaft; C, eccen-tric rotating piston ; D, follower slide. The eccen-tric cylindrical piston operates the slide by itsrevolution. … 331. NAPIER ROTARY ENGINE.—An eccentric mounted cylinder on a shaft concentricwith the shell. There are two sliding wings in slotsin the shell, held to their bearings by springs or camwheels on the shaft outside with connecting bars.There are two pair of ports. 92 STEAM POWER.
Mechanical movements
