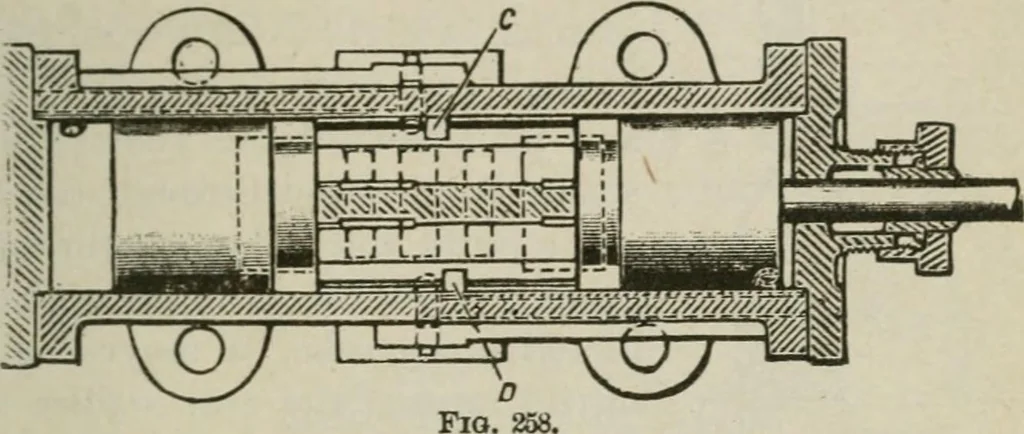

ngle cylinder pump valve motion is a compoundvalve piston and slide valve in one piece and performs the office The Steam Pump. 293 of both a main and auxiliary valve. It seats over the mainsteam cylinder on the web or casting connecting together thevalve pistons, and is provided at the bottom with… … opening and closing the small steam ports, which admit steamto the valve pistons; it is also provided with L shape slots forthe purpose of alternately exhausting steam from the valvepistons through the steam ports.
