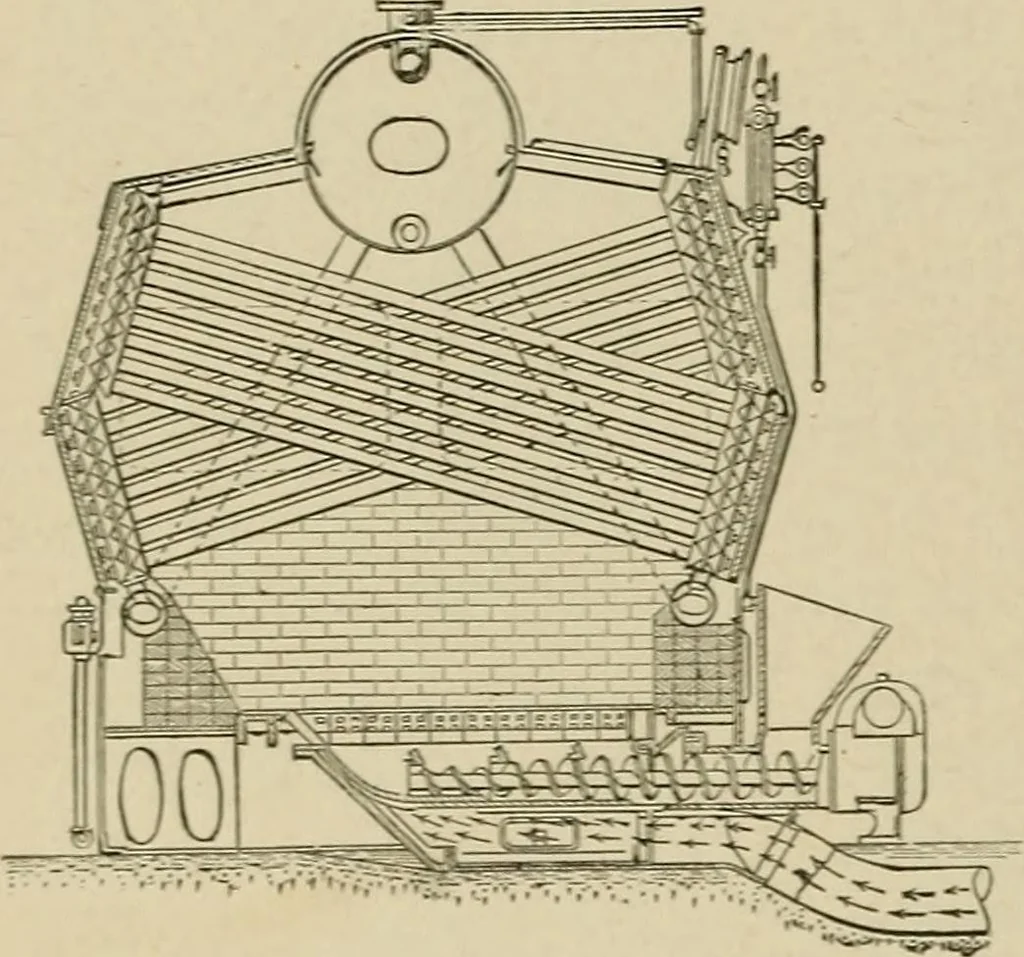

371a. THE STERLINGBOILER.—The hot gases ofcombustion pass lengthwisethrough the three stacks oftubes guided by the lire brickpartitions. All the fire sur-face divided by 12 equals theboiler horse power. Tubesare cleaned by steam blowpipes. Circulating pipes out-side the setting. … 371//. THE WORTHIXG-T O X WATER TUBEBOILER.—The water tubesections are between headersand cross each other in series :the lower ends of the diagonalsections are connected with across pipe for circulation fromthe steam, drum. Has theAmerican stoker attached.
