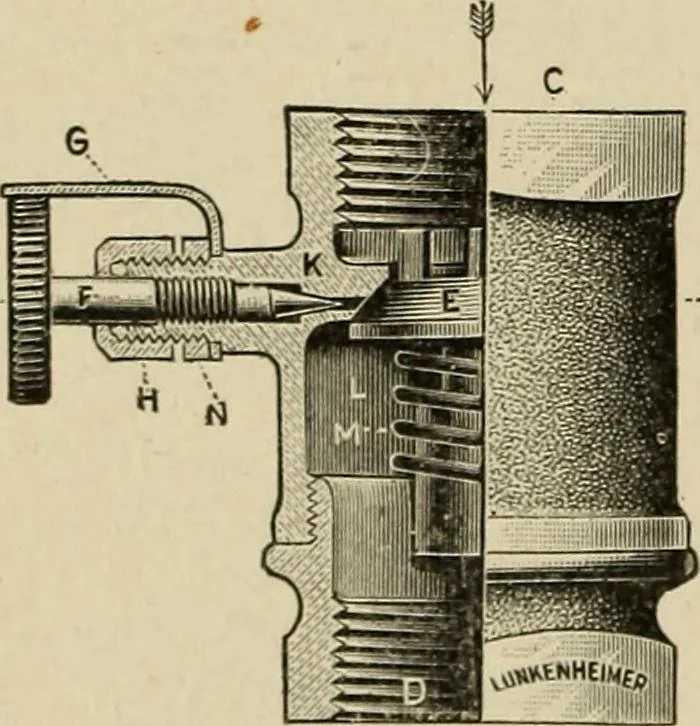

463^. V A L V EGEAR FOR EX-PLOSIVE MO-TORS.—H, air inlet;F, air valve; G, gasor gasoline valve; f,air valve lever ; B, gasvalve lever operatedfrom the cam at C;O, exhaust; E, ex-haust valve ; , e, ex-haust valve lever, op-erated by cams at c. … 463^. GASOLINE ATOMIZER.—By injection through the valveseat K which has a grooved pas-sage around it to distribute the gas-oline evenly to the indraft of thepiston A, the regulating needlevalve. Section ON A-BL
