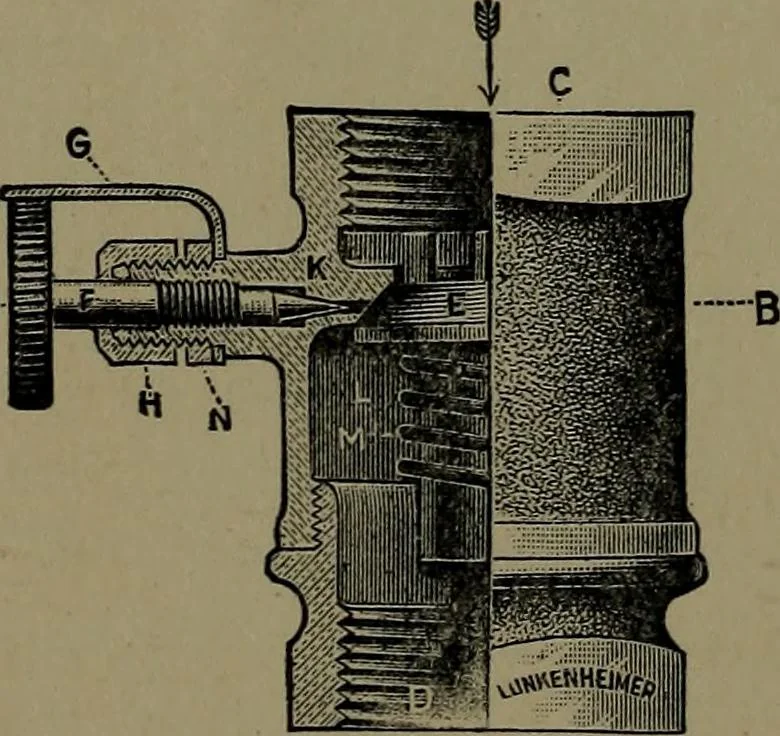

463^. VALVEGEAR FOR EX-PLOSIVE MO-TORS.—H, air inlet;F, air valve; G, gasor gasoline valve; f,air valve lever; B, gasvalve lever operatedfrom the cam at C;O, exhaust; E, ex-haust valve; e, ex-haust valve lever, op-erated by cams at c. … 463J. GASOLINE ATOMIZER.—By injection through the valveaeat K which has a grooved pas-sage around it to distribute the gas-oline evenly to the indraft of thepiston A, the regulating needlevalve. Section ON A-GL
