Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 180

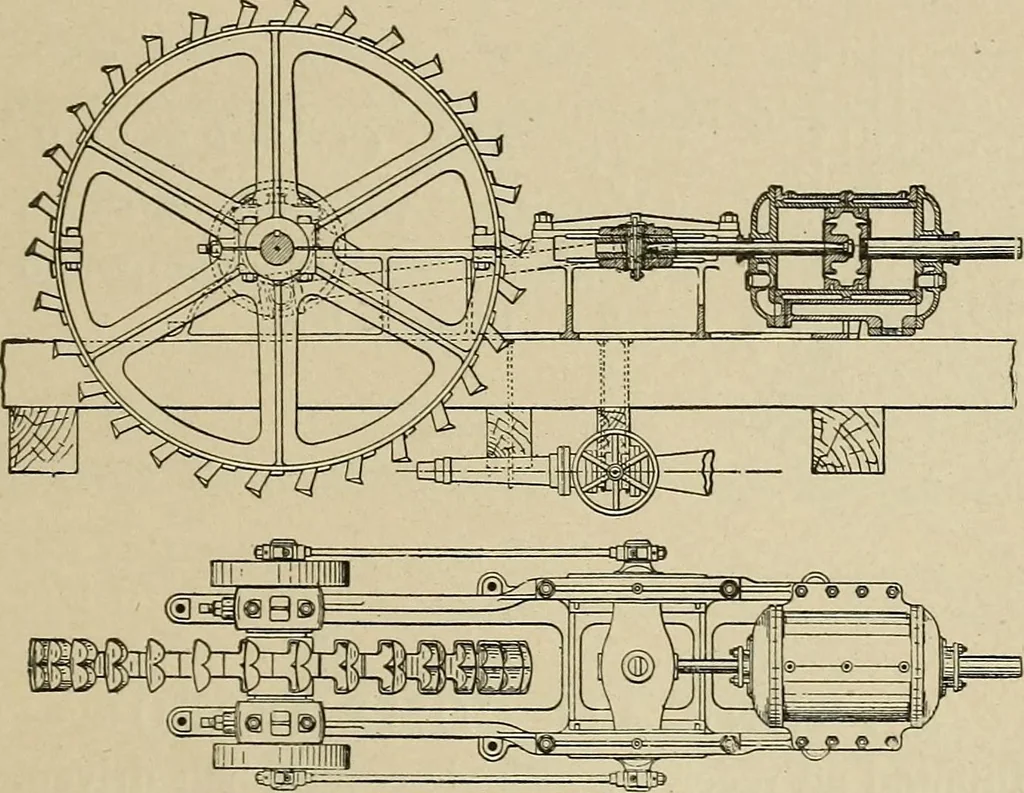

R, Taylor system. The principles ofthe old Trompe blower extended for highpressures. A number of air tubes, c, c,terminate at the conical entranceof the down-flow pipe, B, at a, a.A supply of water to the cham-\ ber A, A, and its flow down thepipe, draws air through thesmall pipes, carrying it down… … 637. AIR COM-PRESSOR.—Pat-tern of the Inger-soll-Sergeant DrillCo. Operated by aPelton wheel. Ver-tical section. 638. Plan.
Mechanical movements
