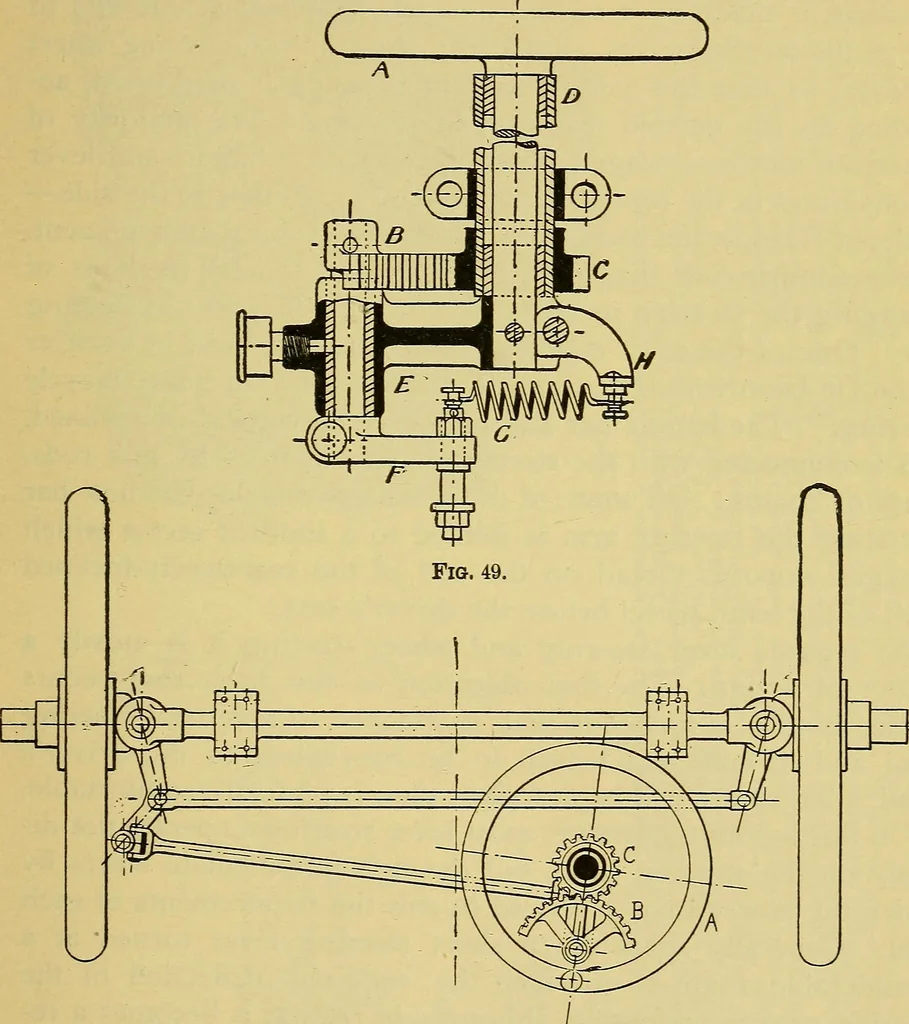

for the axle of the inner wheelwill be accomplished and the proper difference for all usual con-ditions between the angles of the two, approximated. That is,although it generally happens that the angular inclination of thesteering arms works best on curves of radius midway betweenthe extremely long… … Fig. 50. Figs. 49 and 50.—The Steering Arrangement of the Gobron-Brillie Carriages. In bothSecures A is a band wheel, at the end of whose spindle, D, is an arm, E, to which ispivoted a toothed sector, B. The arm, E, being moved as the wheel, A, is turned,carries around with it the pivot of the…
