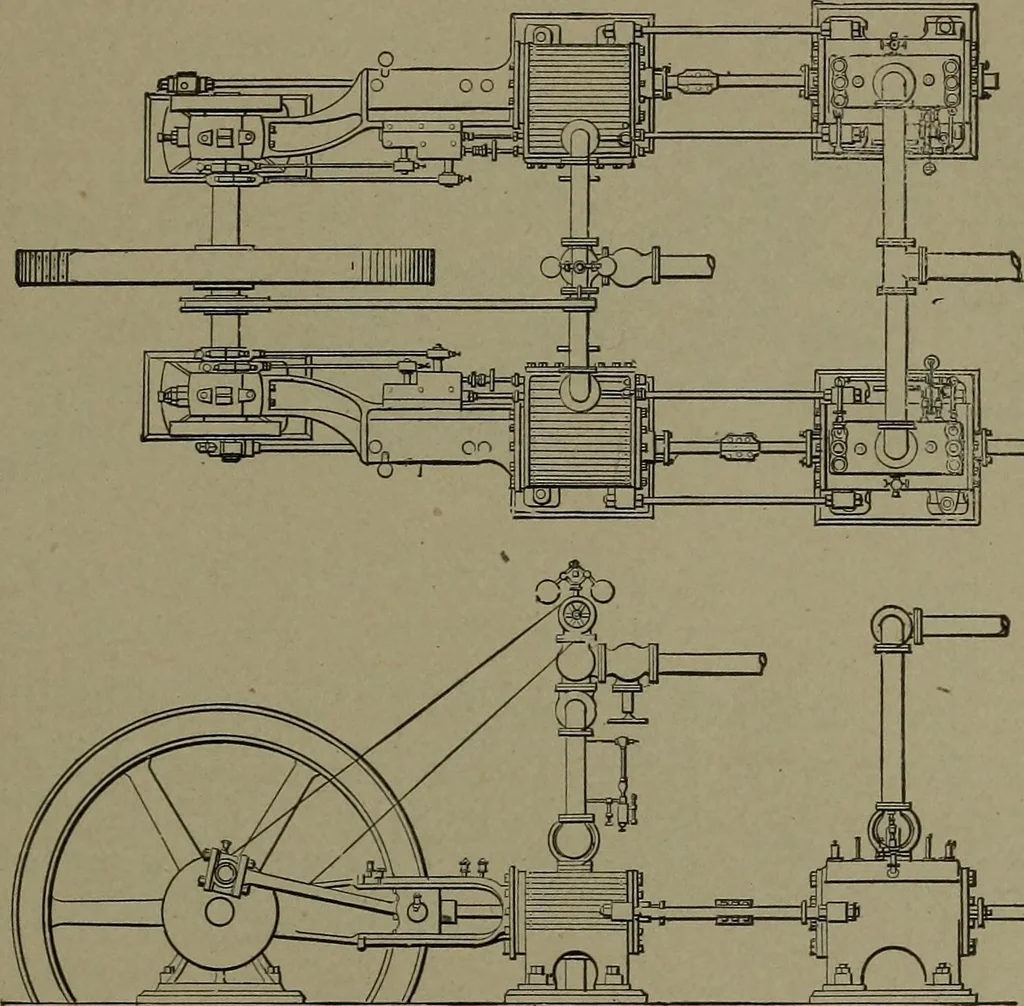

643. TRUNK AIR COMPRESSOR.— Mounted on receiver. Single-acting, belt driven.A very compact modeL AIR POWER APPLIANCES. 173 h^ … r=3 644. DUPLEX STEAM ACTUATED AIR COMPRESSOR, Ingersoll-Sergeant model. The air cylinders are tandem to eachsteam cylinder with steam and air governors. 645. Elevation. 646. COMPOUND AIR COMPRESSOR.—Air is drawn inthrough the ports A, passes through the annular valve in the large nflDUE
